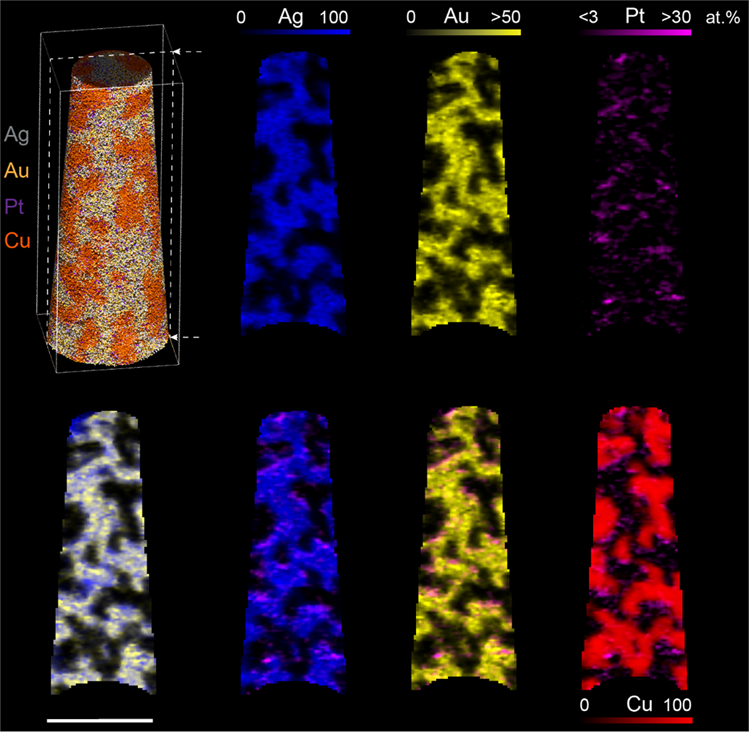

Fig. 8: Formation of nanoscale Pt surface segregates and elimination of core-shell distribution of AgAu.

Concentration maps taken from 5 nm-thick slices of APT volumes of NPG-Pt air-annealed at 300 °C for 2 h, along the longitudinal axis. Scale bar is 30 nm.
