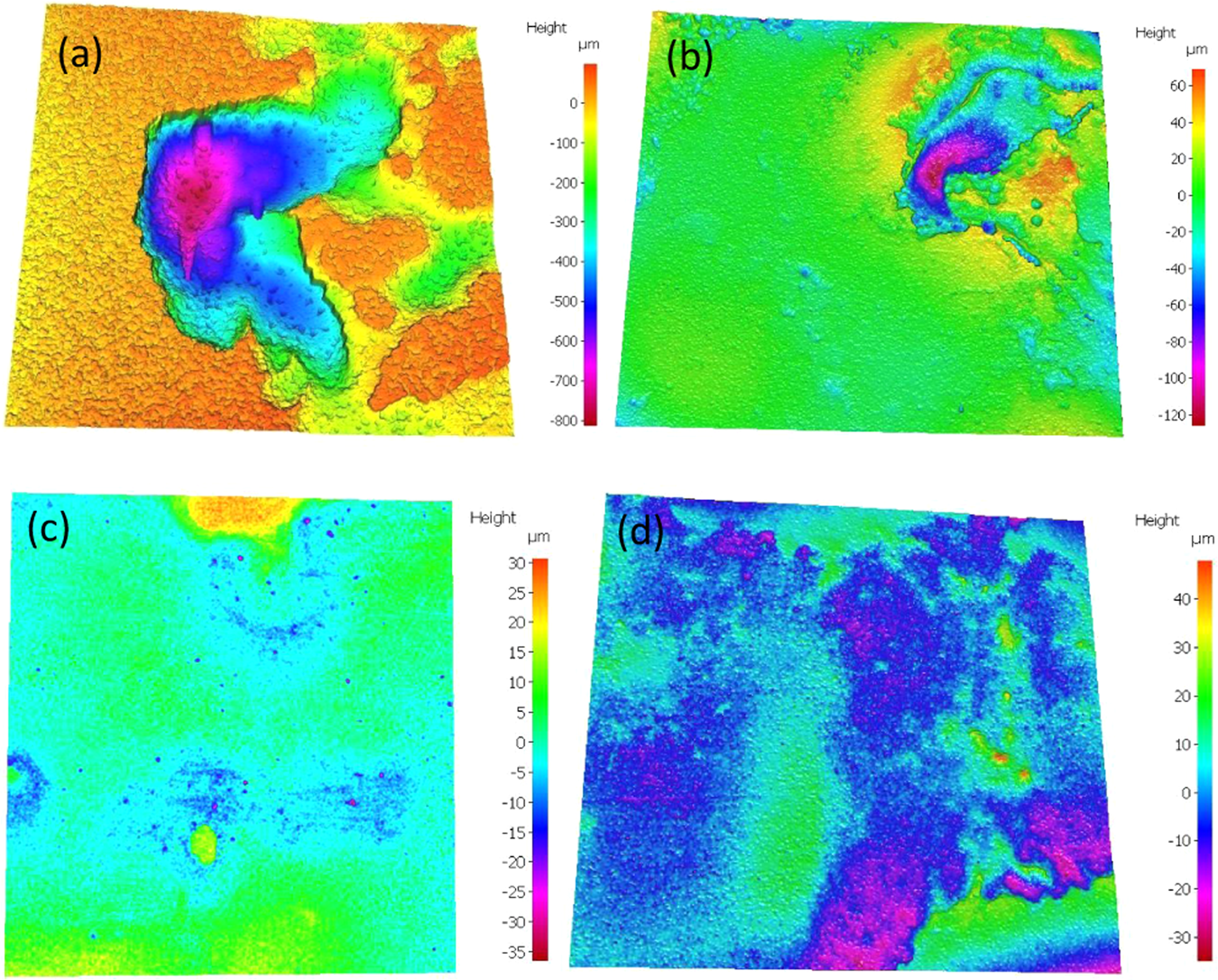

Fig. 1: Surface morphologies of carbon steel half-ring samples after corrosion product removal.

a Sample at the top section of the test rig without VCI. b Sample at the top with VCI. c Sample at the bottom without VCI. d Sample at the bottom with VCI.
