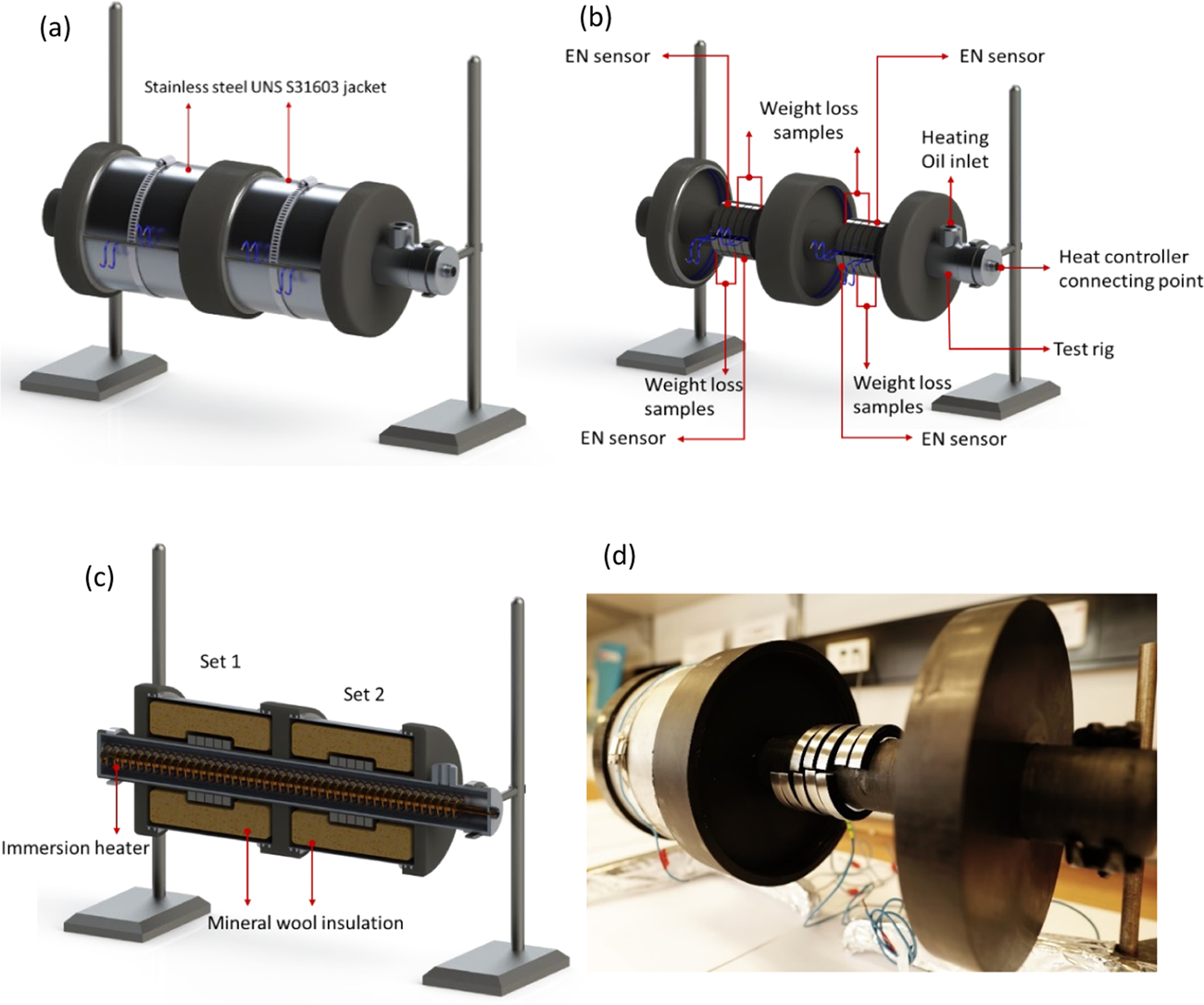

Fig. 11: Different views of the CUI test assembly.

a 3D drawing—full setup. b 3D drawing—insulation and jacket removed. c 3D drawing—cross-section. d Photo of the setup with the right-hand side showing the arrangement of specimens and EN sensors.
