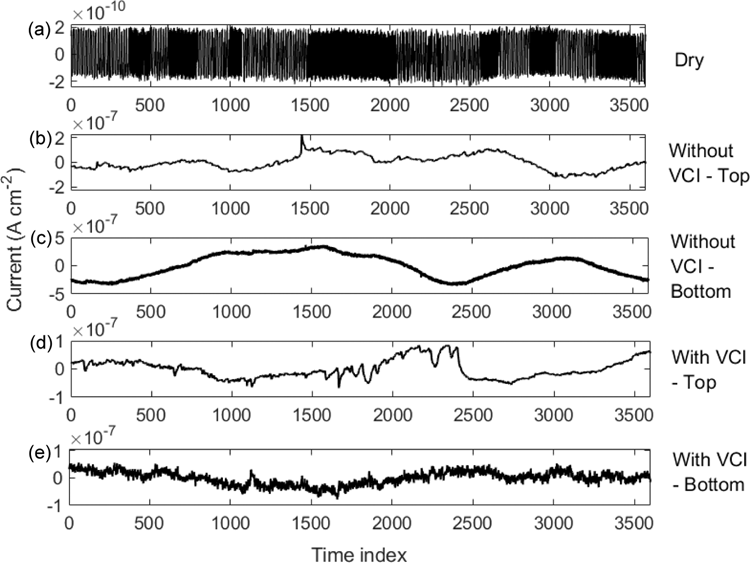

Fig. 3: ECN segments obtained with top and bottom sensors covered by dry insulation and wet insulation with and without the addition of VCI.

From: Use of electrochemical current noise method to monitor carbon steel corrosion under mineral wool insulation

Fig. 3

a ECN segment associated with dry insulation. b ECN segment related to the top section under wet insulation without VCI addition. c ECN segment related to the bottom section under wet insulation without VCI addition. d ECN segment related to the top section under wet insulation with VCI addition. e ECN segment related to the bottom section under wet insulation with VCI addition.
