Fig. 4: Corrosion Film Cross Section of an Mg-Li-Al Alloy.
From: The development of β phase Mg–Li alloys for ultralight corrosion resistant applications

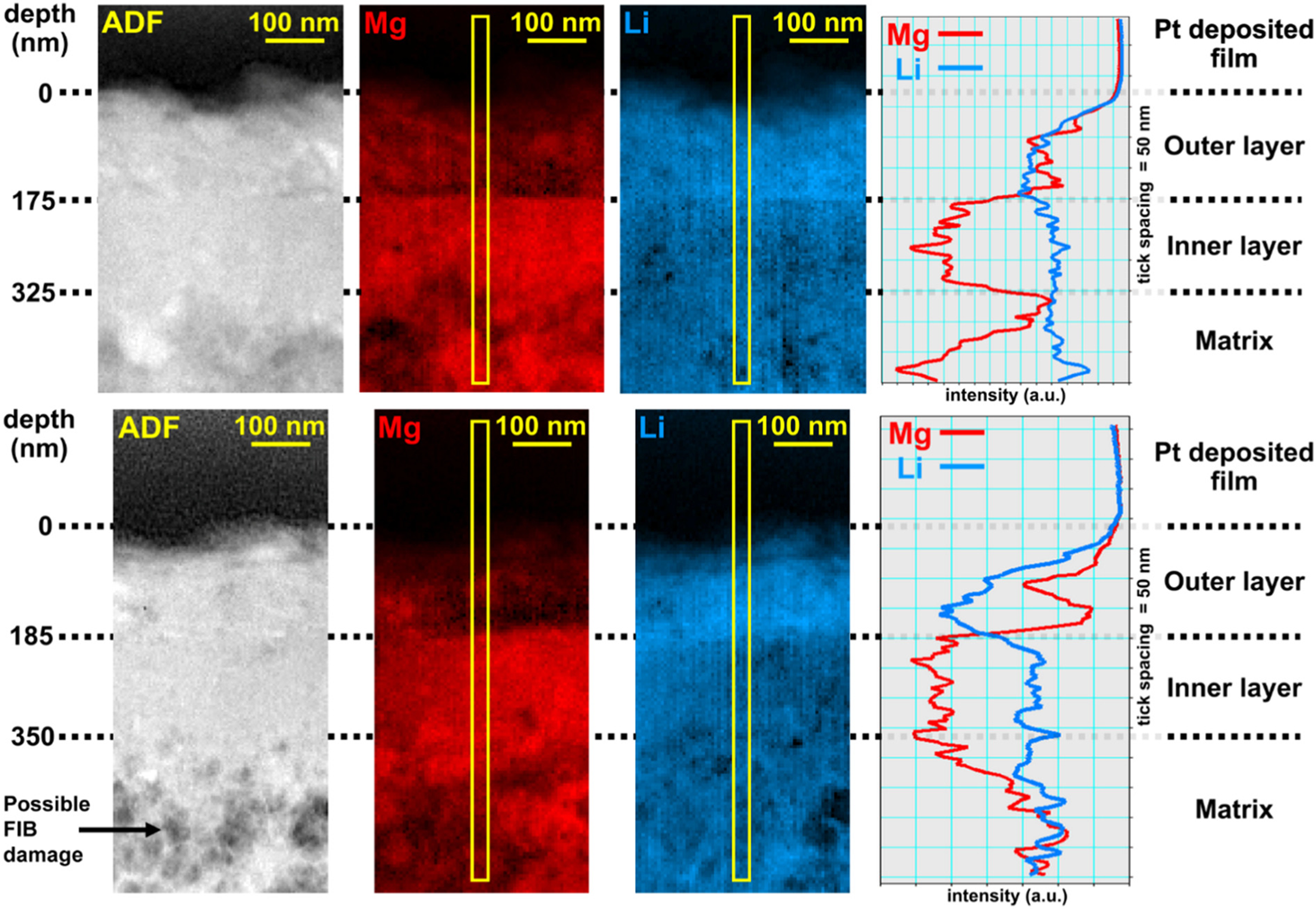

Annular dark-field images and corresponding EELS map for two TEM specimens of LA113 after 24 immersion in 0.1 M NaCl and subsequent exposure to air for 7 days. The yellow boxes indicate the loci of where the intensity profiles were taken55 (reprinted with permission from ref. 55, copyright Elsevier 2019).
