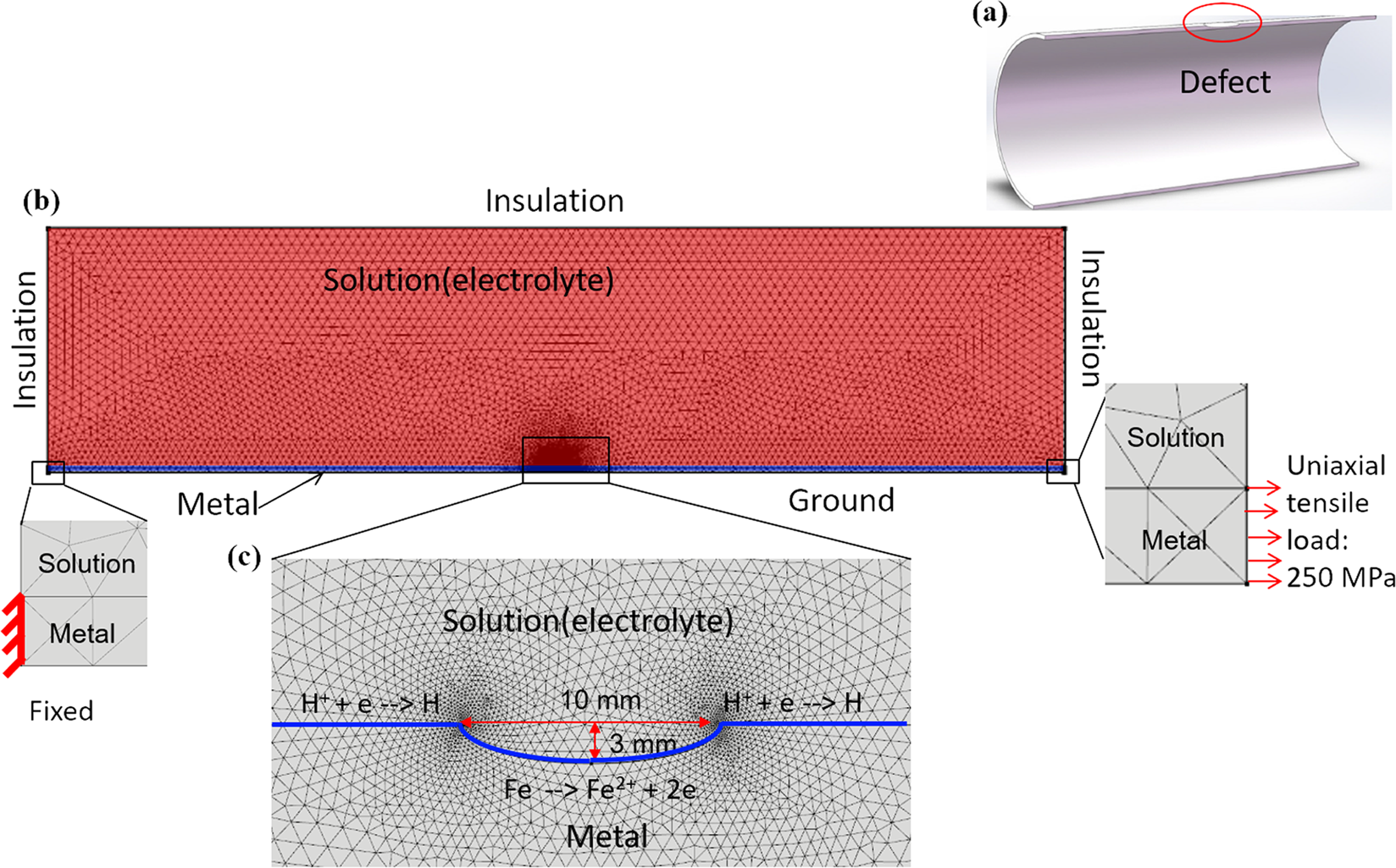

Fig. 6: Simulation model for the CISCC prediction in Type 304 SS canister.

a shows a pitting defect on the surface of the canister. b Corresponding simulation model and the boundary conditions. c Enlarged image of the corroded area. Red shaded part represents the solution, and the blue shaded part represents the metal.
