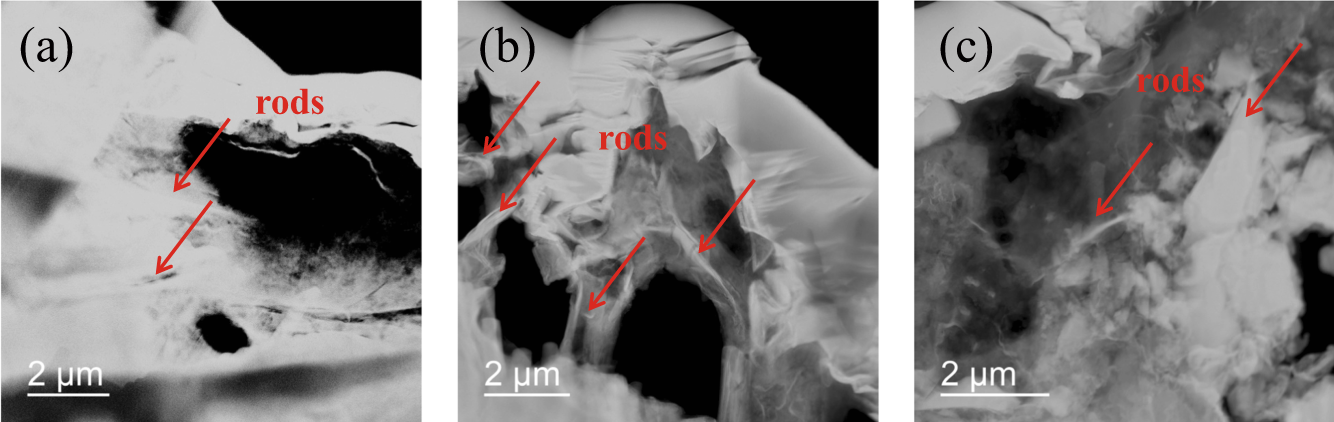

Fig. 10: HAADF-STEM images of the zircon sample thin films with inner/outer detection angle of 110–440 mrad.
From: Dissolution and precipitation behaviors of zircon under the atmospheric environment
The scale bar is 2 μm.
Fig. 10: HAADF-STEM images of the zircon sample thin films with inner/outer detection angle of 110–440 mrad. | npj Materials Degradation
