Fig. 12: TEM images and SAED pattern of the rod crystal.
From: Dissolution and precipitation behaviors of zircon under the atmospheric environment

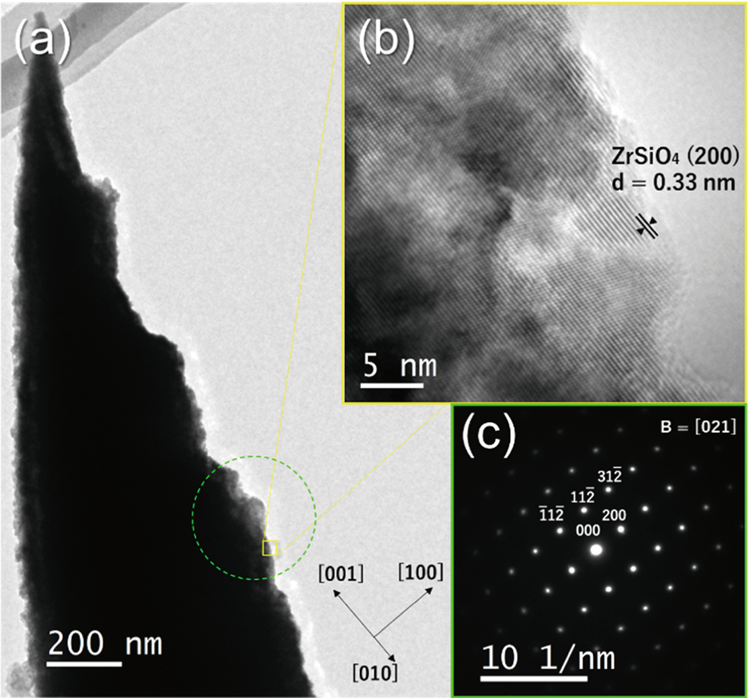

a Bright-field TEM image of the rod crystal, b HRTEM image, and c SAED pattern. The scale bar on the left image is 200 nm, the upper right is 5 nm and the bottom right, 10 nm−1.
