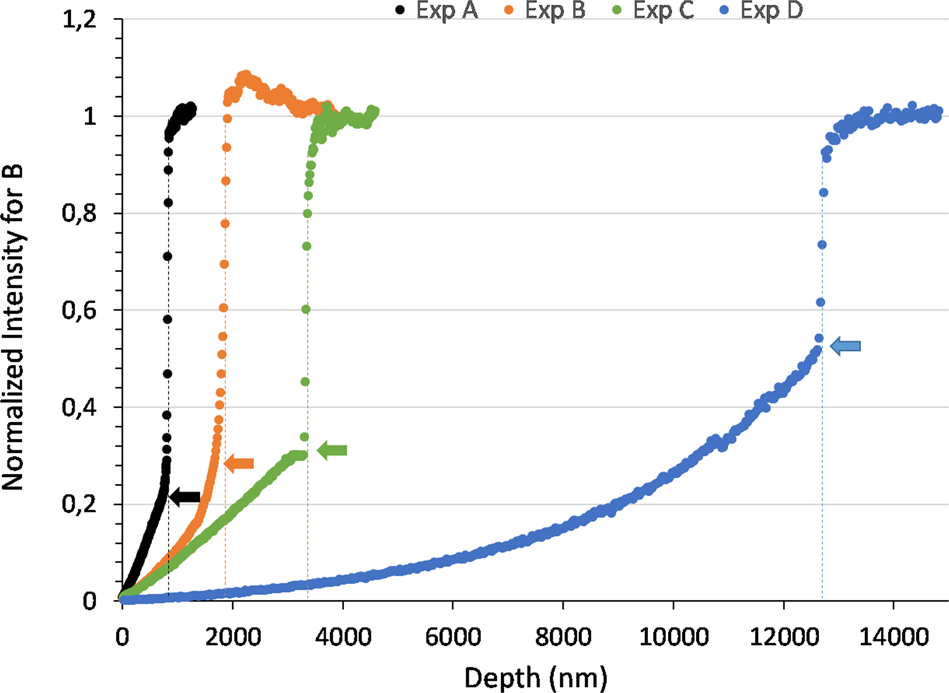

Fig. 11: ToF-SIMS B profiles for experiments A–D.

The dotted vertical lines indicate the position of the pristine glass/alteration layer interface, and the arrows show the B content at that interface. The retention of B in the alteration layer increased with the thickness of the altered glass.
