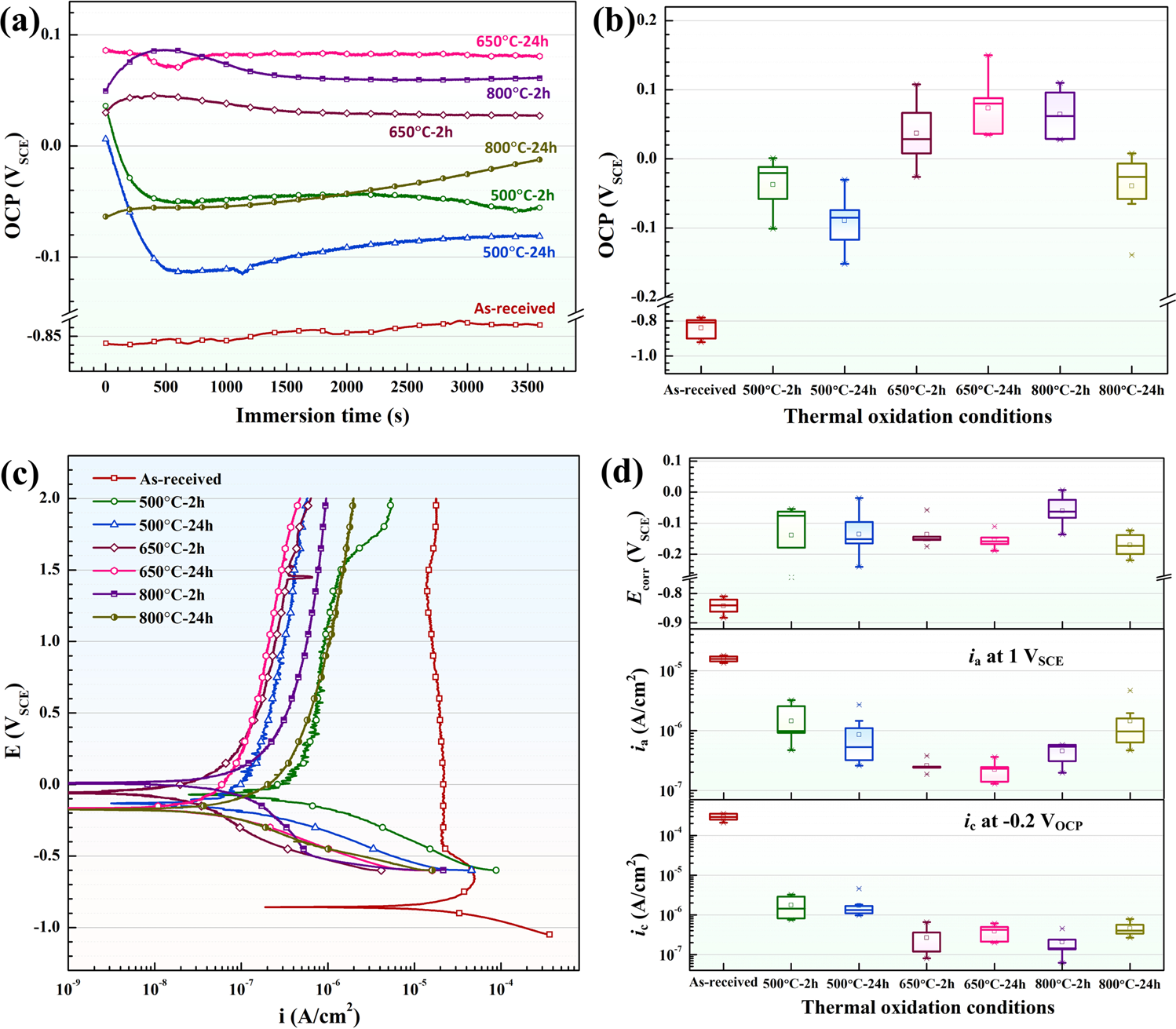

Fig. 4: OCP and potentiodynamic polarization of the as-received and thermally oxidized pure Ti in the simulated condensates.

From: Degradation of thermal oxide film on pure titanium in an acidic environment containing fluoride

Fig. 4: OCP and potentiodynamic polarization of the as-received and thermally oxidized pure Ti in the simulated condensates.

a open circuit potential, b the steady-state OCPs, c polarization curves and d the corrosion potential, the anodic current density at 1 VSCE, and the cathodic current density at −0.2 Vvs.OCP calculated from c. Error bars represent standard deviations of three independent samples from triplicate systems.
