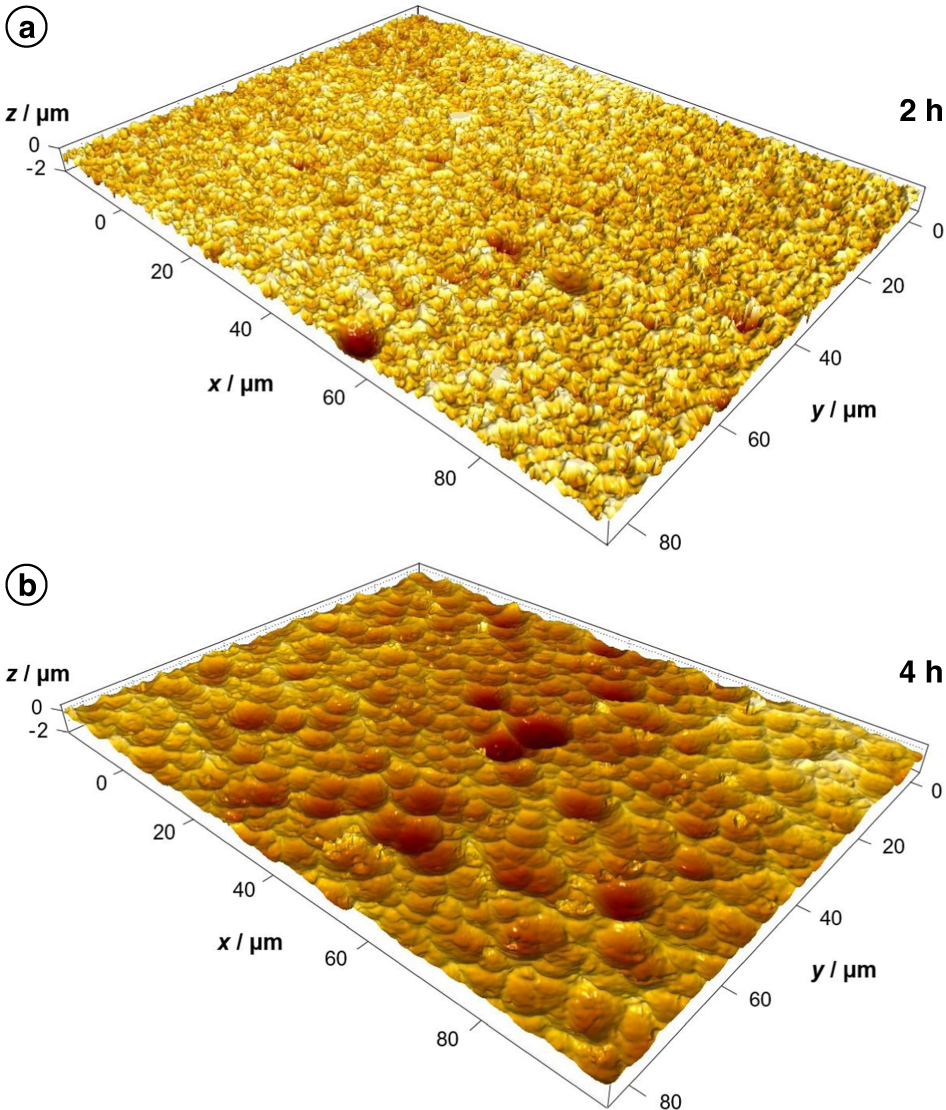

Fig. 5: High-resolution images of PET films after reaction times of 2 and 4 h.
From: Temporal and spatial evolution of enzymatic degradation of amorphous PET plastics
The maps were recorded by confocal microscopy. a Topography after 2 h, capturing the first occurrence of individual craters. b Topography after 4 h, showing complete coverage by craters.
