Fig. 5: Time evolution of electrode surface O2 concentration, coverage and current density under electrolyte film with different thicknesses.

From: Numerical simulation of carbon steel atmospheric corrosion under varying electrolyte-film thickness and corrosion product porosity

Fig. 5

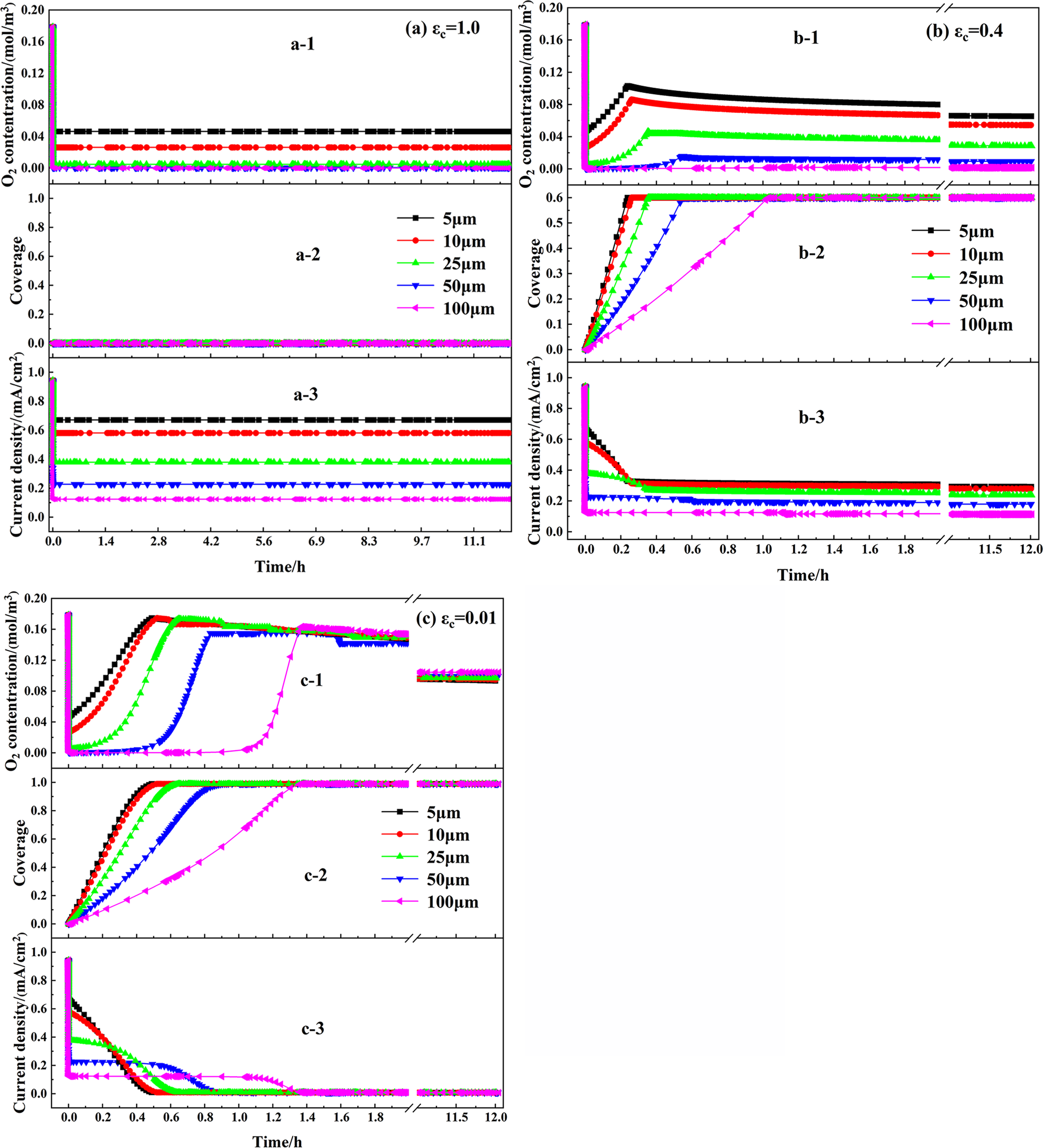

a the εc of corrosion products is 1.0. b the εc of corrosion products is 0.4. c the εc of corrosion products is 0.01. 1 electrode surface O2 concentration. 2 electrode surface coverage. 3 electrode surface current density.
