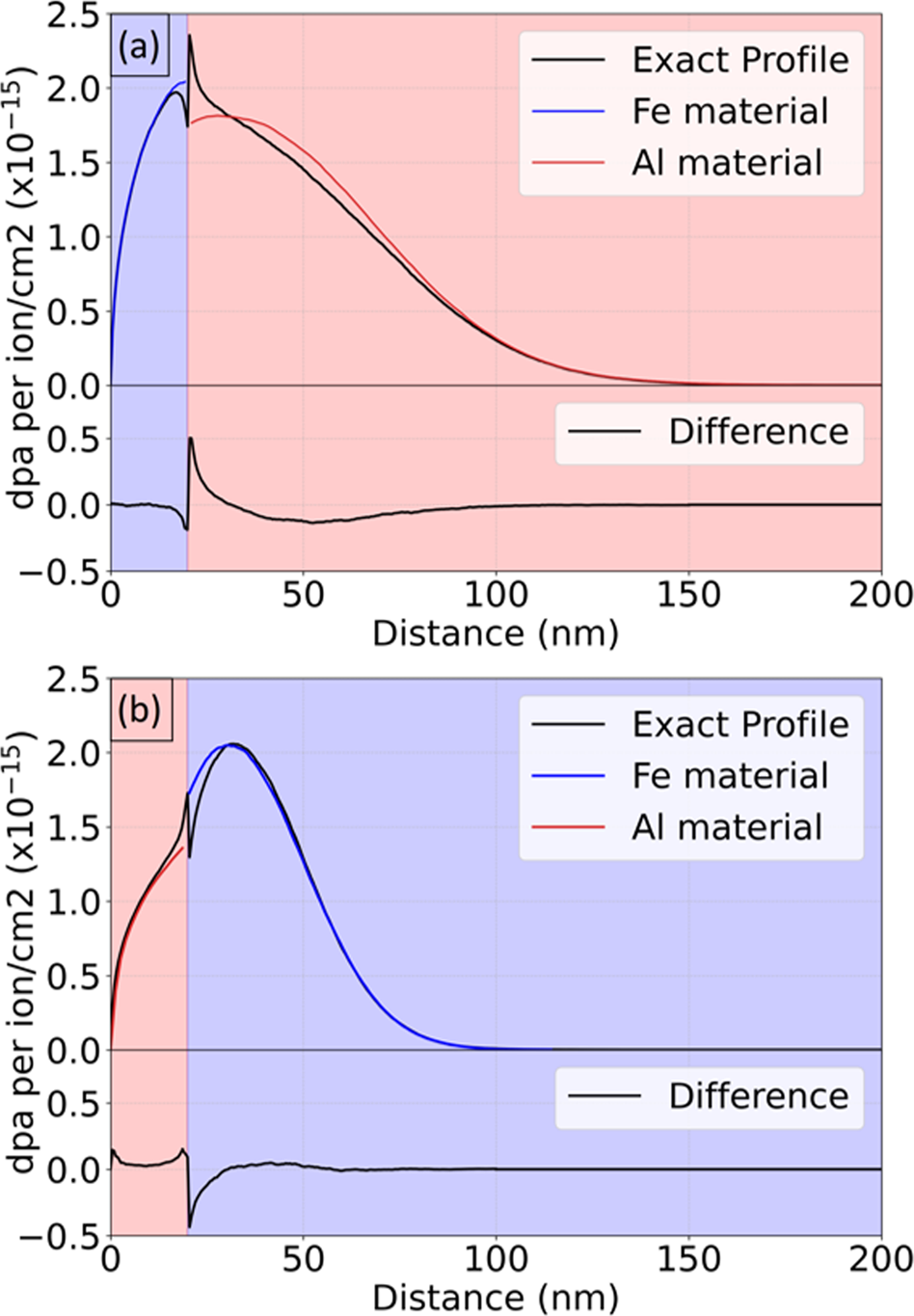

Fig. 3: Representative damage profiles of using the exact and proposed method.
From: Spatial distribution of primary radiation damage in microstructures
Shown are a 100 keV Fe ion across an a Fe-Al interface and b Al-Fe interface at 20 nm from the surface. Shading represents the composition of the materials (red=Al, blue=Fe). Top panels: Damage profiles. Black line shows the exact profile, calculated with explicit BCA simulations of the layered materials. Coloured lines show the predicted damage of the novel method, using the piecewise damage function in Eq. (13). Bottom Panel: Difference curve between the exact profile and proposed method.
