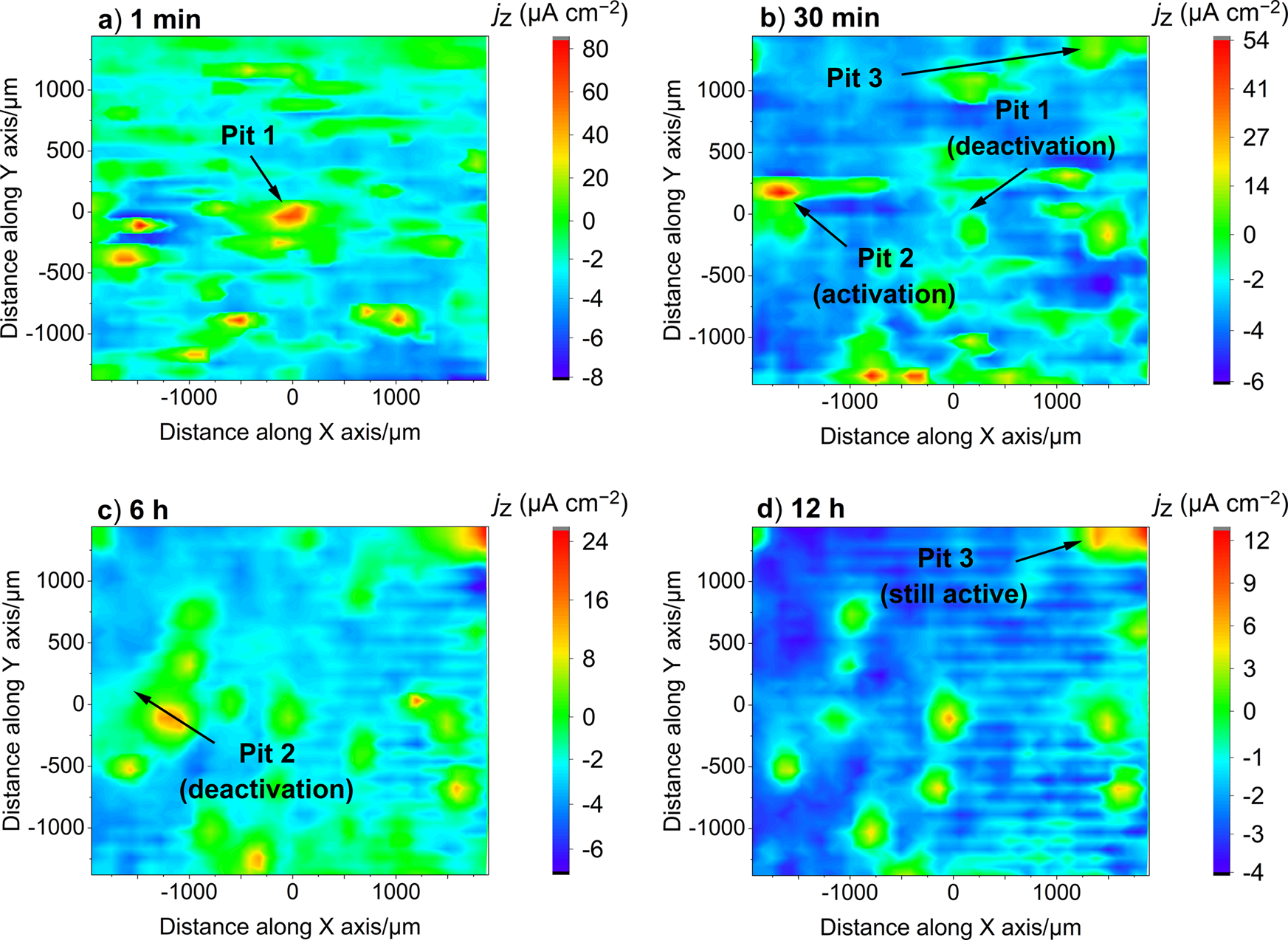

Fig. 1: SVET maps of AA2024 in NaCl.

From: Inhibition of the localised corrosion of AA2024 in chloride solution by 2-mercaptobenzimidazole and octylphosphonic acid

Fig. 1: SVET maps of AA2024 in NaCl.The alternative text for this image may have been generated using AI.

SVET maps recorded over AA2024 during immersion in 10 mM NaCl at selected exposure times: a 1 min, b 30 min, c 6 h and d 12 h. Areas of positive (anodic) and negative (cathodic) ionic current densities are given according to the colour scale bars from red to blue, respectively. Some pits (denoted by the red colour of high anodic current densities) tend to disappear at longer immersion time.
