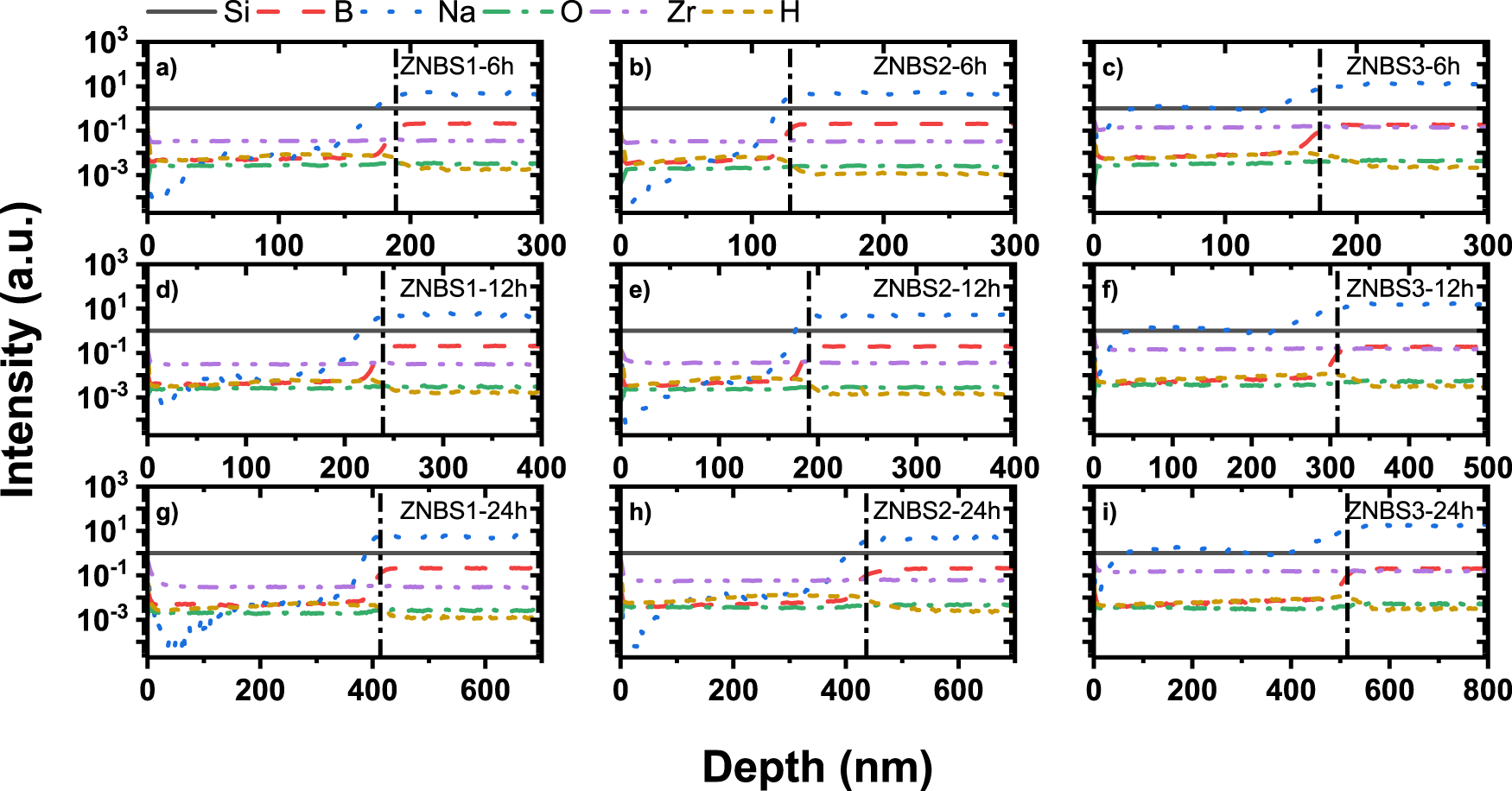

Fig. 4: Element distributions over the depth for un-irradiated ZNBS glasses after leaching. | npj Materials Degradation

Fig. 4: Element distributions over the depth for un-irradiated ZNBS glasses after leaching.

From: Influence of radiation on borosilicate glass leaching behaviors

Fig. 4

The black dash dot lines refer to the half maximum value of Boron intensity. a, d, g are the leaching profile for un-irradiated ZNBS1 glass after 6 h, 12 h, and 24 h leaching, respectively; b, e, h are the leaching profile for unirradiated ZNBS2 glass after 6 h, 12 h and 24 h leaching, respectively; c, f, i are the leaching profile for un-irradiated ZNBS3 glass after 6 h, 12 h and 24 h leaching, respectively.
