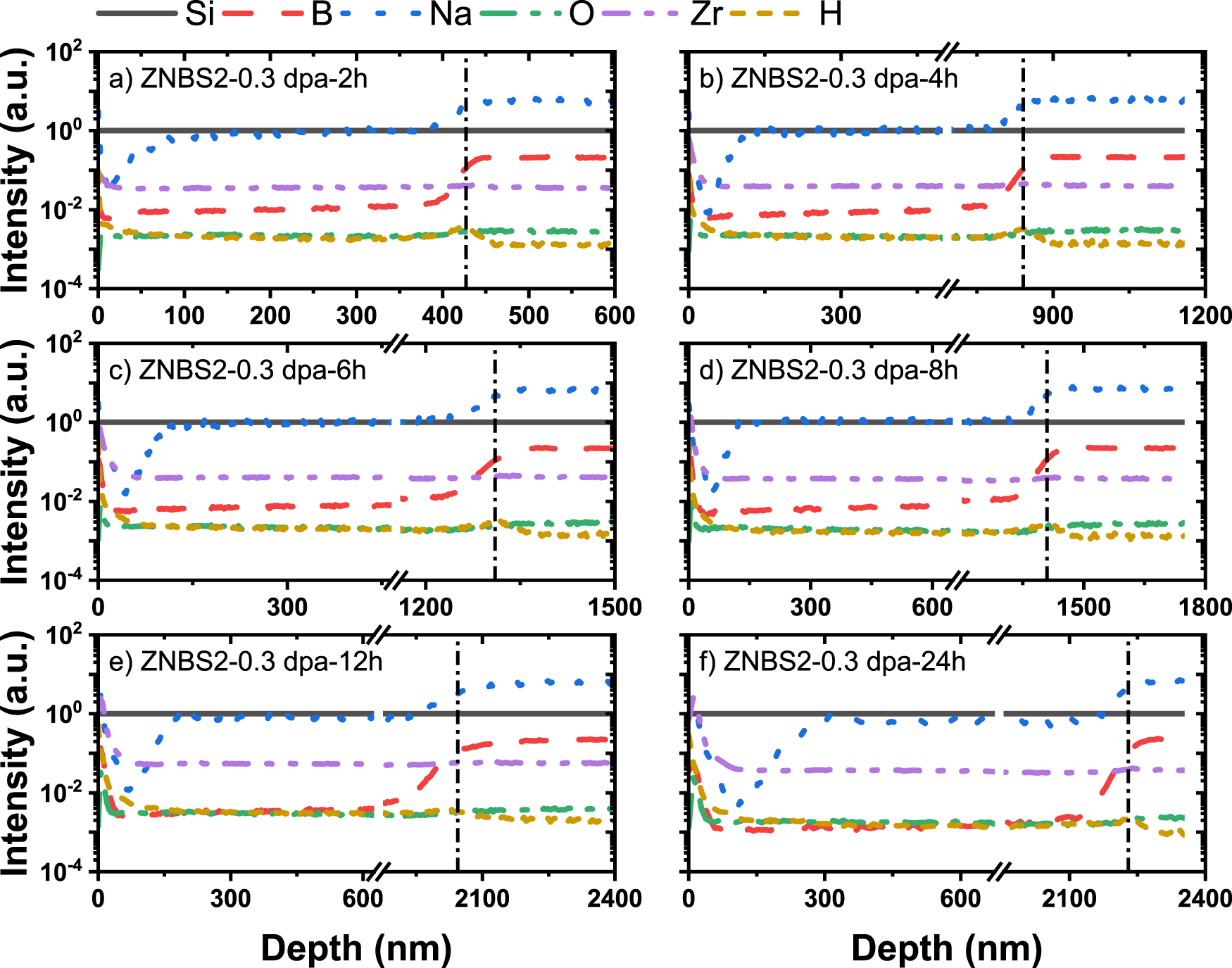

Fig. 5: Element distributions over the depth for ZNBS2-0.3 dpa after different leaching time.
From: Influence of radiation on borosilicate glass leaching behaviors
a–f are the individual distributions for ZNBS2-0.3 dpa after 2, 4, 6, 8, 12, 24 h of leaching, respectively. The black dot lines refer to the half maximum value of Boron intensity..
