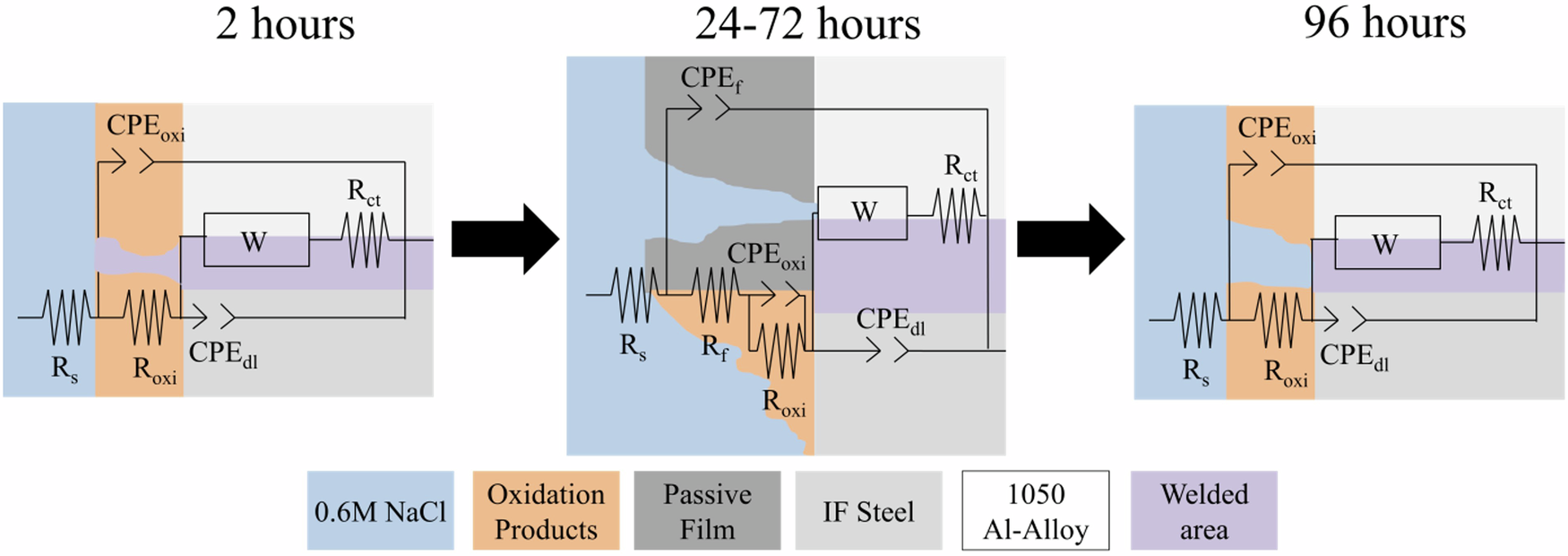

Fig. 11: Evolution of corrosion mechanisms over time in the conduction mode weld.
From: The microstructure-corrosion relationships in laser-welded dissimilar steel-to-aluminium joints
In 0.6 M NaCl: Initially, at 2 hours, the corrosion mechanism included the oxidised layer, the diffusion process, and exposed material. Between 24 and 72 hours, the passive film process was added to the corrosion mechanism. At 96 hours, the mechanism remained similar to that at 2 hours.
