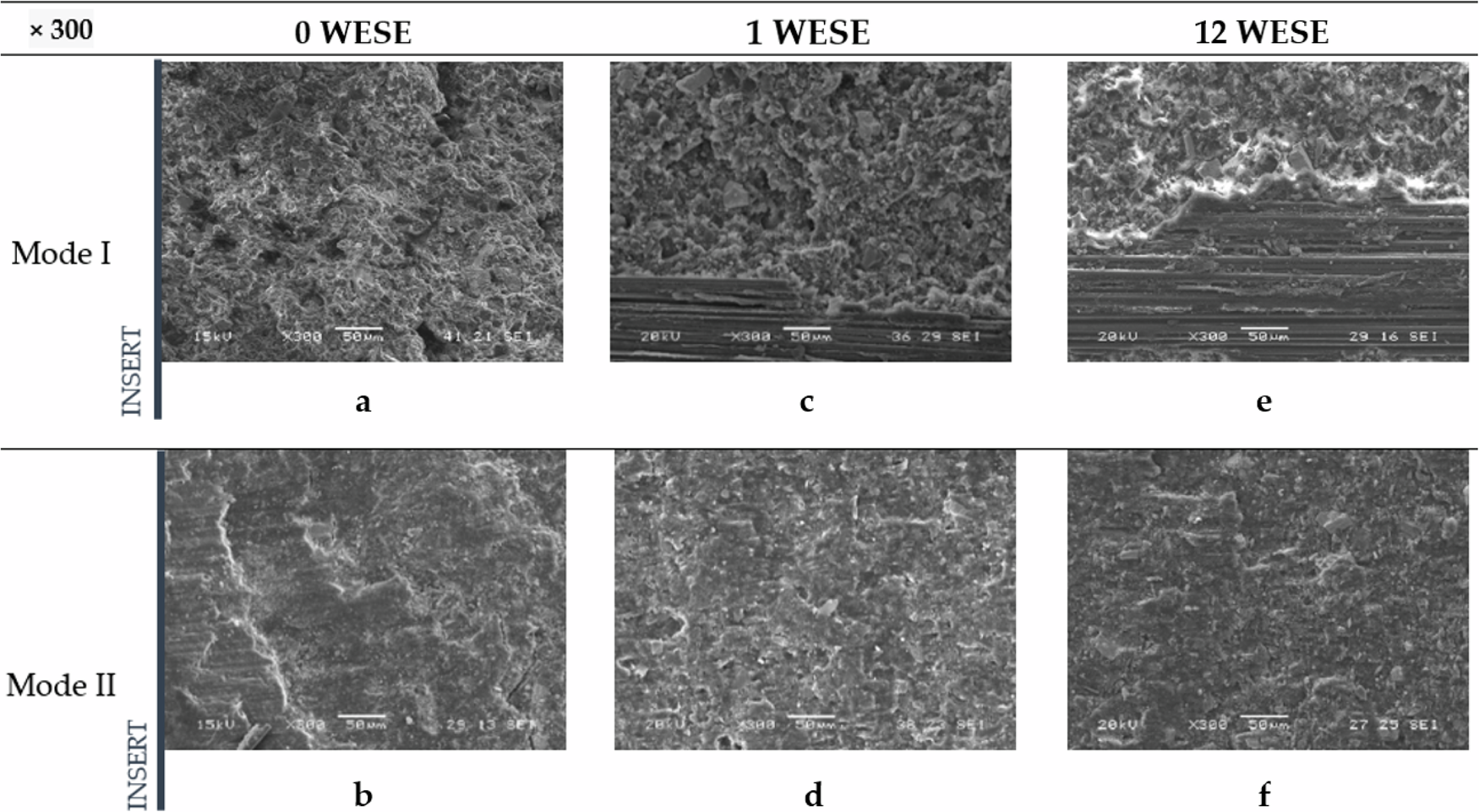

Fig. 8: Fracture surfaces for Mode I and Mode II, captured at 300× magnification.
From: Fracture analysis under modes I and II of adhesive joints on CFRP in saline environment
Including unexposed (a, b), exposed for 1 week (c, d) and exposed for 12 weeks (e, f).
