Fig. 7: Time-lapse Microscopy images of Zn-1Mg-3Al taken under immersion conditions in 0.17 mol.L-1 NaCl pH 7 solution. | npj Materials Degradation

Fig. 7: Time-lapse Microscopy images of Zn-1Mg-3Al taken under immersion conditions in 0.17 mol.L-1 NaCl pH 7 solution.

From: Influence of Mg and Al alloying additions on the corrosion mechanisms of Hot-dipped Zn-Mg-Al coatings: role of microstructure and phase distribution

Fig. 7

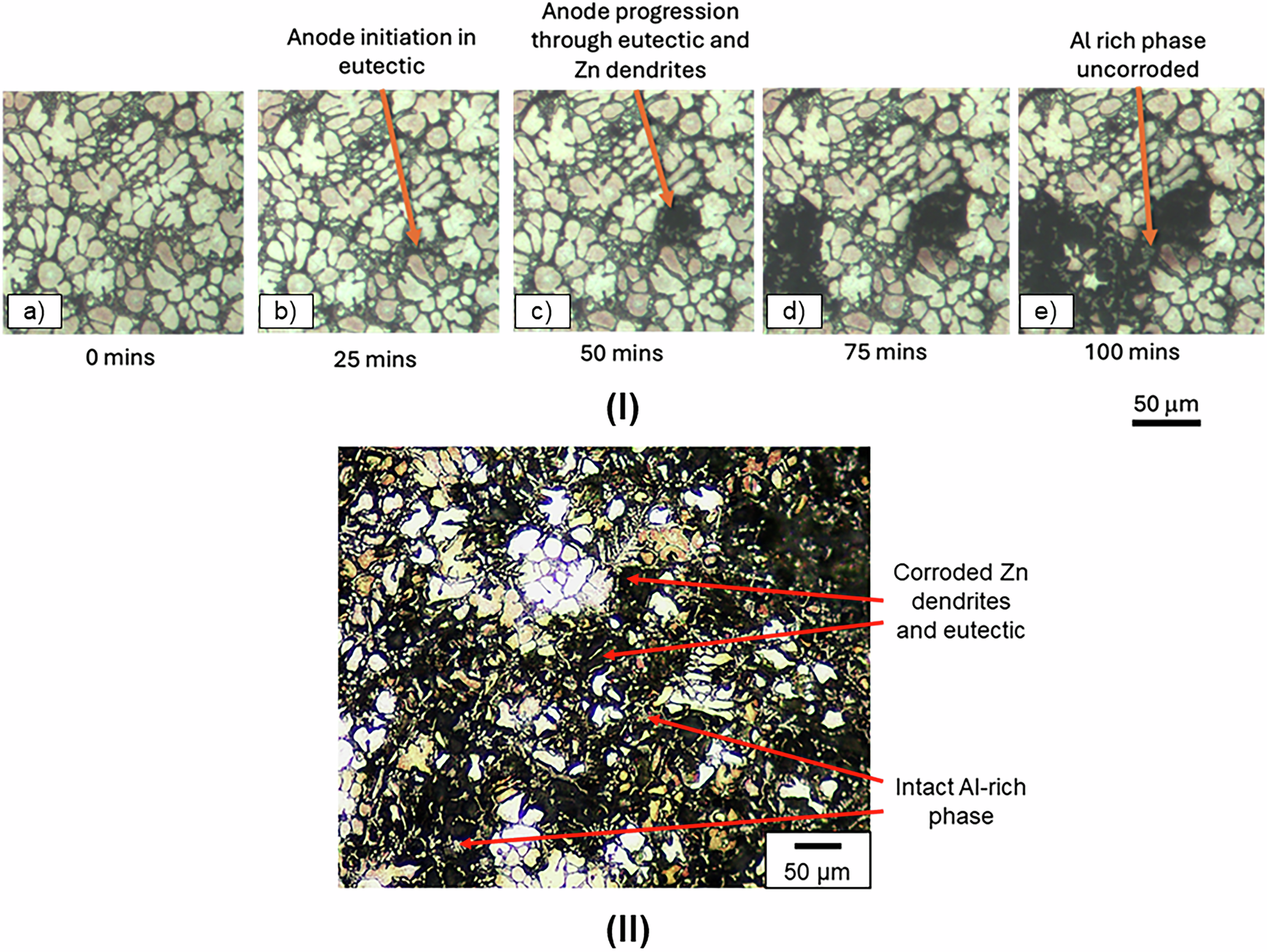

(I) The images taken at (a) 0 min (b) 25 min (c) 50 min (d) 75 min and e 100 min show the initiation and progression of an anode over the first 100 minutes of exposure. (II) The image demonstrates corrosion of the primary Zn dendrites and the eutectic whilst the Al-rich dendritic phase remained generally intact after 24 h immersion in 0.17 mol.L-1 NaCl pH 7 solution.
