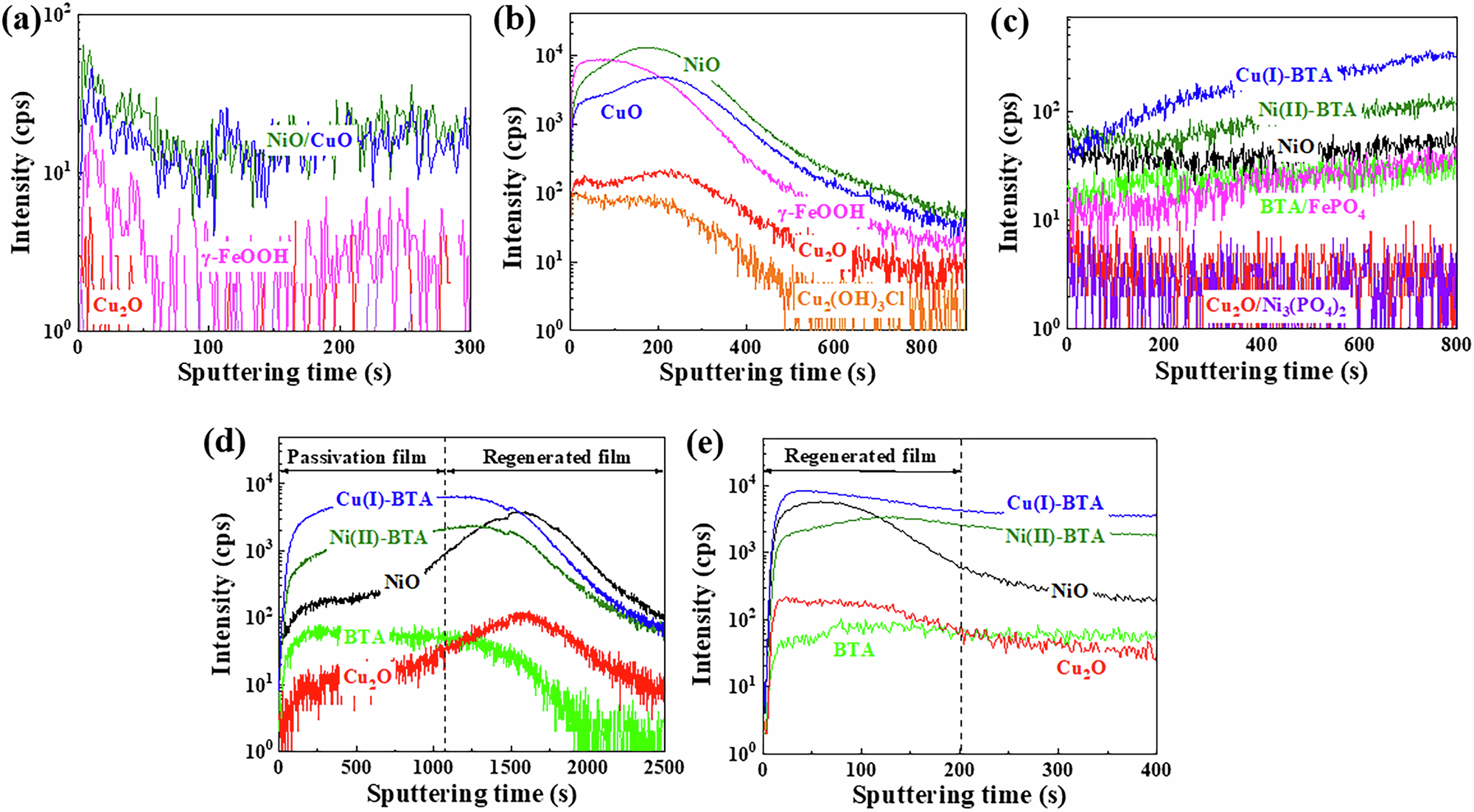

Fig. 21: TOF-SIMS ion depth profiles analysis.

a B30 bare samples after 30 days of static immersion; b bare samples after 30 days of flow accelerated corrosion; c pre-passivation samples before corrosion; d pre-passivation samples after 30 days of static immersion; e pre-passivation samples after 30 days of flow accelerated corrosion.
