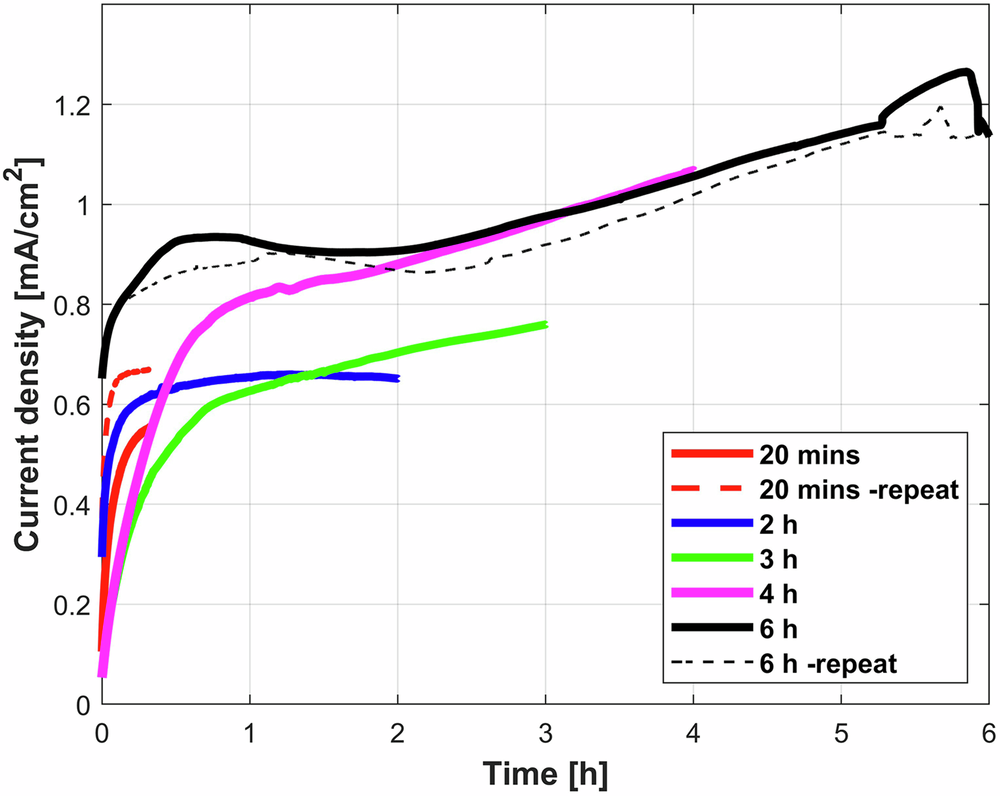

Fig. 6: Temporal evolution of current densities during the anodic potentiostatic tests.
From: Anodic dissolution mechanisms of iron in bentonite slurries
Evolution of the current densities measured during anodic potentiostatic tests (Eapplied = −0.4 VAg/AgCl) in 6.3% wt bentonite slurry for different times: 20 mins (red lines), 2 h (blue line), 3 h (green line), 4 h (magenta line), 6 h (black lines). Dashed lines indicate the replications.
