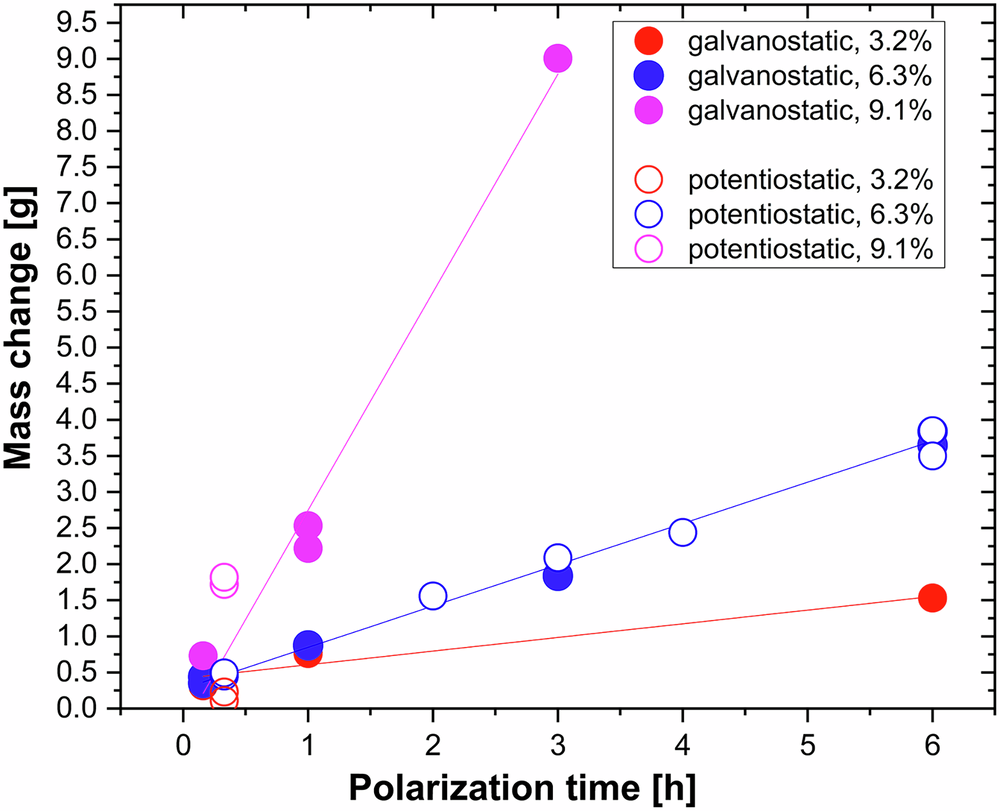

Fig. 8: Mass change with polarization time.
From: Anodic dissolution mechanisms of iron in bentonite slurries
Change in electrode mass for tests conducted under potentiostatic (hollow dots) and galvanostatic (solid dots) conditions in different bentonite slurries:3.2% (red), 6.3% (blue) and 9.1 wt. % (magenta).
