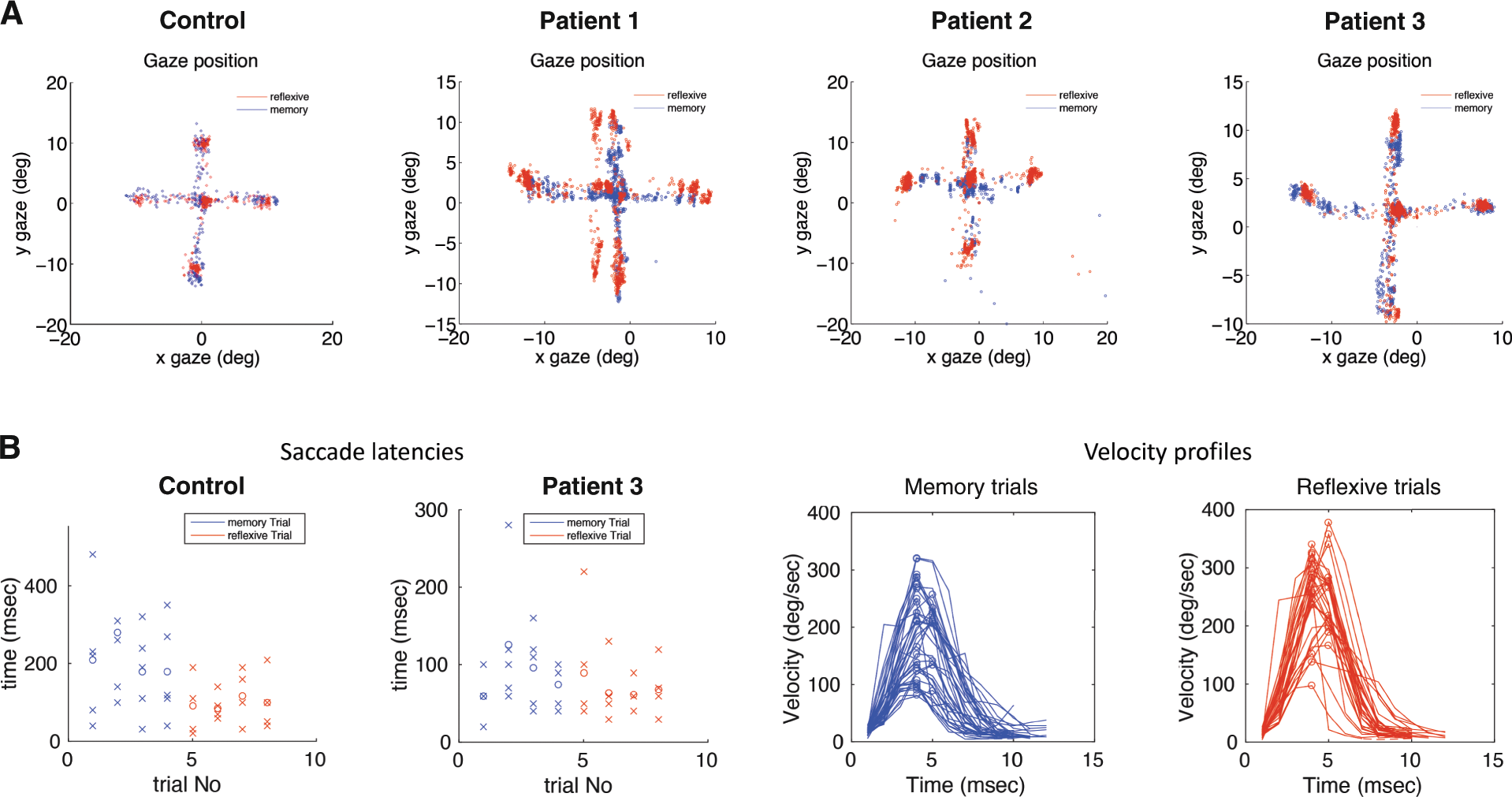

Fig. 1: Saccade characteristics in Parkinson’s disease.

a The exemplary raw gaze positions of one control and three patients are shown. Gaze during reflexive trials is always presented in red, gaze during memory trials is shown in blue. Each dot represents a single eye position measurement. Data are presented in visual angle space (degrees), centred around central fixation at coordinates (0,0). Visual targets were presented at a distance of 10° from the centre in either the vertical or horizontal direction. b Data from one control (left) and patient 3 (right) are presented in more detail with saccade latencies (in ms) during reflexive (red) and memory (blue) trials; additionally scheduled for patient 3 are velocity profiles (deg/s over ms) during each trial type. While patients show large differences in precision and the overall eye movement pattern, gaze during memory trials (blue) appears to more often land in between target and central fixation spot than during reflexive trials (red) (a). Similarly, latencies show slight differences between memory and reflexive trials in patient 3 (b). More prominently, saccadic velocity profiles show saccades with lower peak velocity in memory trials (blue) than in reflexive trials (red), indicating saccades more often stopping short during the memory task.
