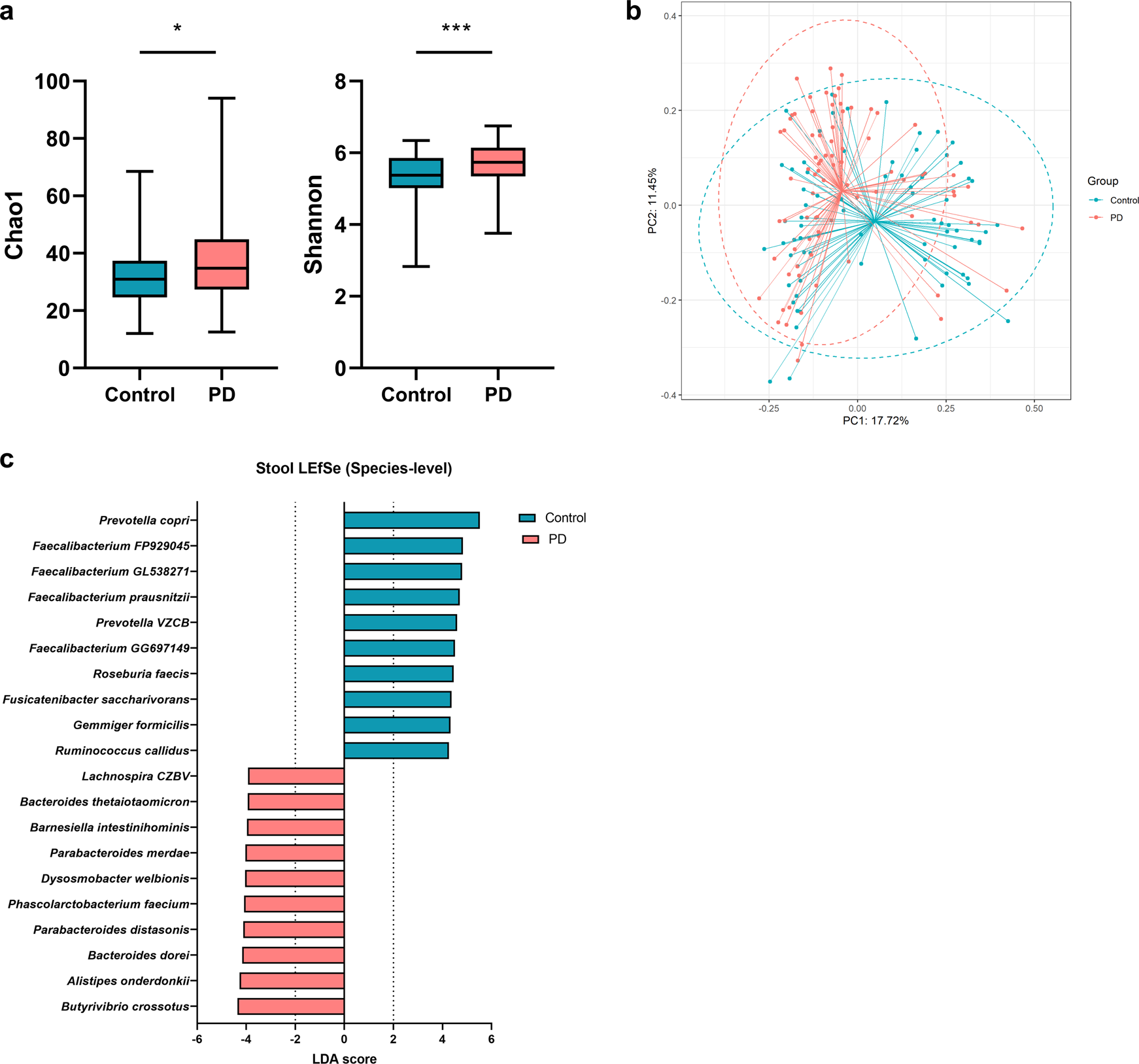

Fig. 3: Gut microbial species-level community structures based on whole-genome shotgun sequencing.
From: Oral and gut dysbiosis leads to functional alterations in Parkinson’s disease
a Alpha diversity between Parkinson’s disease (PD) and healthy controls. b Principal coordinates analysis based on the Bray-Curtis dissimilarity. c Species-level LEfSe analysis. The top 10 genera in the gut based on the LDA score in the Parkinson’s disease and HC groups are shown. Faecalibacterium FP929045 (AJ270470), Faecalibacterium GL538271 (GL538271), Prevotella VZCB (VZCB01000106), Faecalibacterium GG697149 (GG697149) and Lachnospira CZBV (CZBV01000019) were phylotype species (NCBI accession number). Boxplot centerline represents the median (50th percentile). The top and bottom hinges represent 75th and 25th percentiles, respectively. The upper and lower whiskers correspond to the highest and lowest data points. n.s: not significant, *P < 0.05, **P < 0.01, ***P < 0.001.
