Fig. 4: Common and distinct relationship between hypo-connectivity in amygdala subregions with NMS.

From: Common and distinct roles of amygdala subregional functional connectivity in non-motor symptoms of Parkinson’s disease

Fig. 4: Common and distinct relationship between hypo-connectivity in amygdala subregions with NMS.

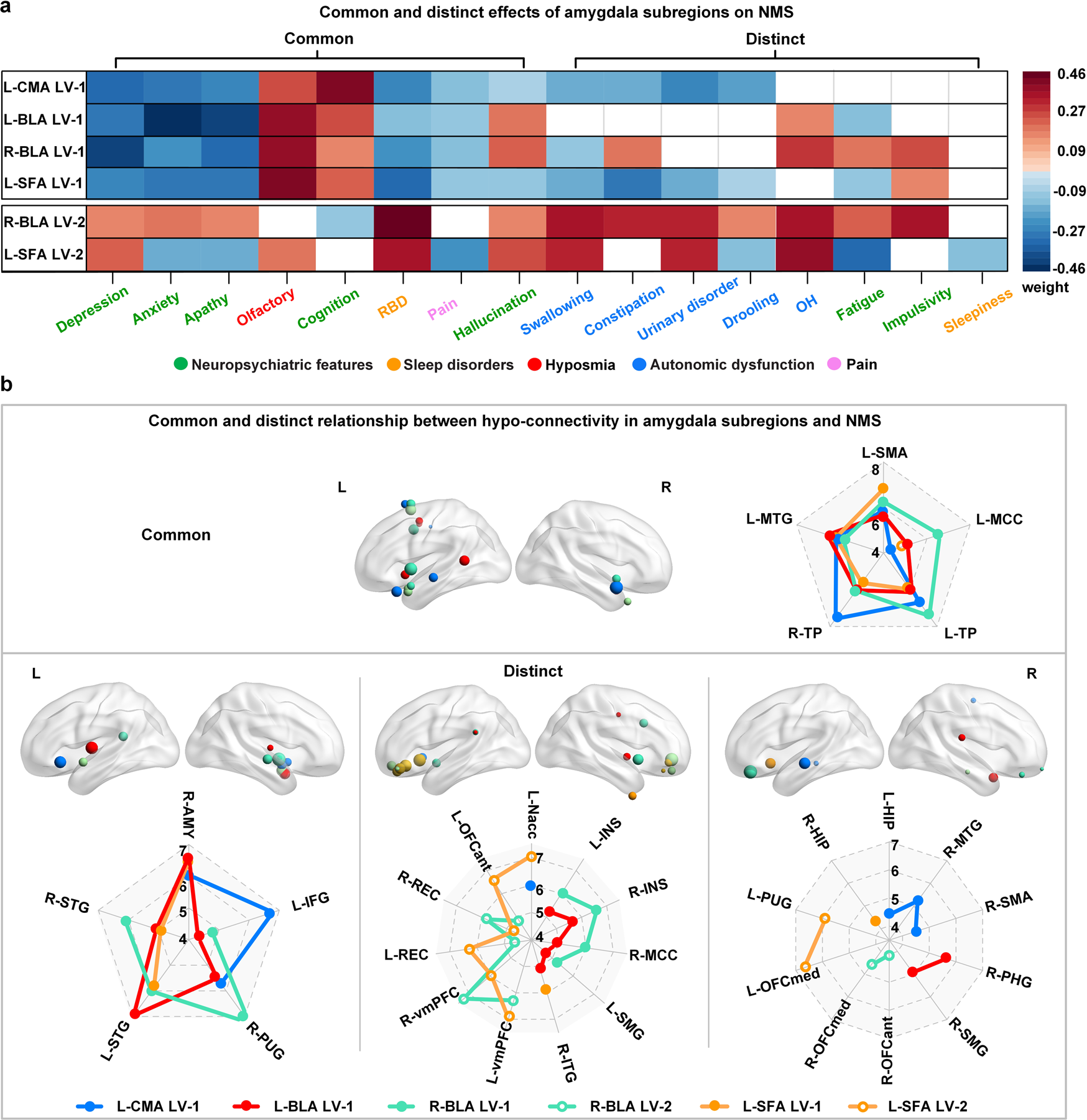

a The correlations of amygdala subregions to different NMS phenotypes. b Summary of spatial correlation of hypo-connectivity of amygdala subregions to NMS. The size of the spheres in the brain indicates the bootstrap ratio (BSR) values, larger spheres represent the greater contribution to the LV that represent the relationship between hypo-connectivity features and NMS. Brain maps show the location of brain regions, while radar maps show the BSR value of brain regions. The commonly brain region map (top left) means that each region in this map exhibits hypo-connectivity with all four amygdala subregions. While distinct brain map mean that the region exhibits hypo-connectivity with only one or some of the four sub-regions.
