Fig. 4
From: Uncertainty equality with quantum memory and its experimental verification

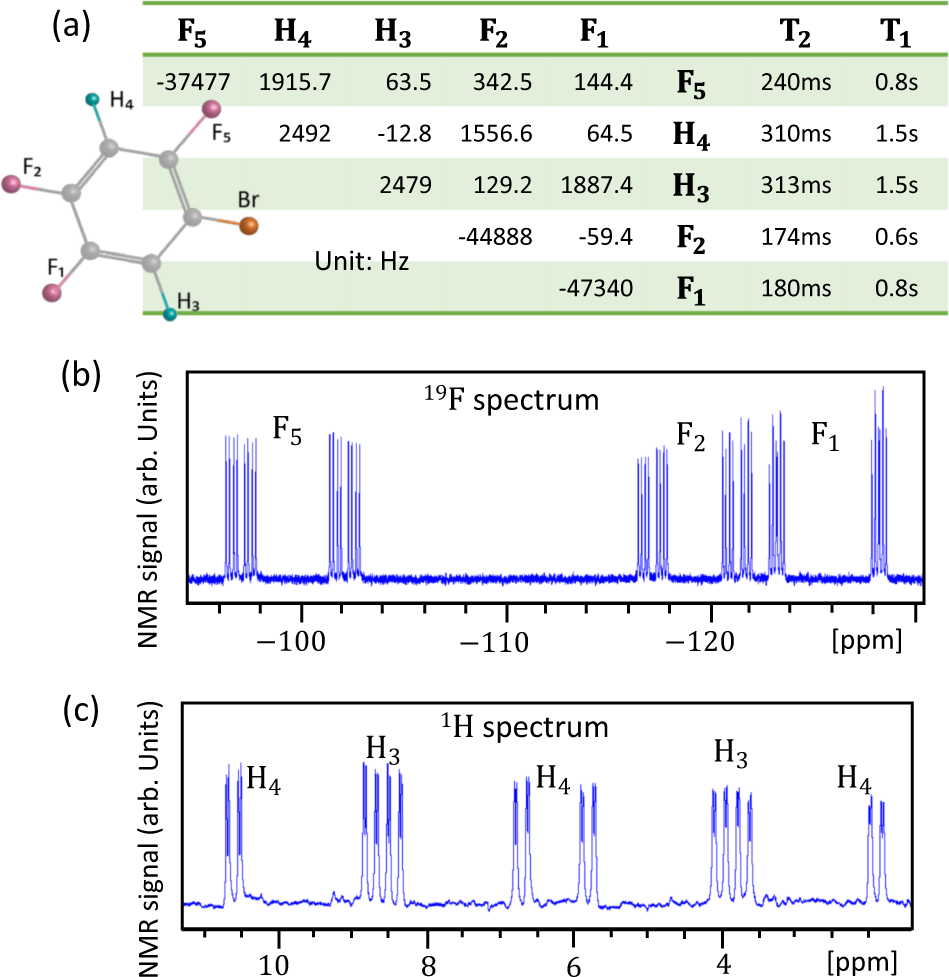

a Characteristics of the 1-bromo-2,4,5-trifluorobenzene molecule. The chemical shifts and effective coupling constants (in Hz) are on and above the diagonal in the table, respectively. The last two columns show the transversal relaxation times and the longitudinal relaxation times of each nucleus. b, c The thermal equilibrium 19F and 1H spectra
