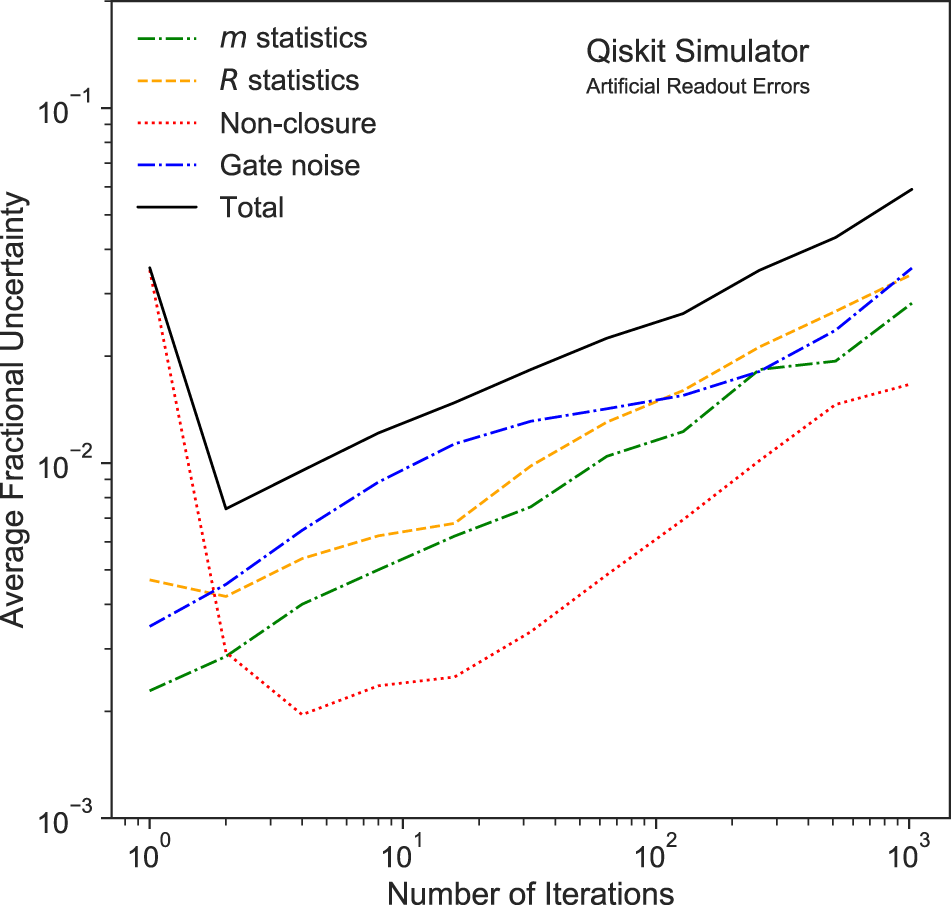

Fig. 6: Sources of uncertainty for \({\hat{t}}_{\text{IBU}}\) as a function of the number of iterations for the example presented in Fig. 2.

From: Unfolding quantum computer readout noise

Fig. 6

Each uncertainty is averaged over all states. The total uncertainty is the sum in quadrature of all the individual sources of uncertainty, except gate noise (which is not used in the measurement simulation, but would be present in practice).
