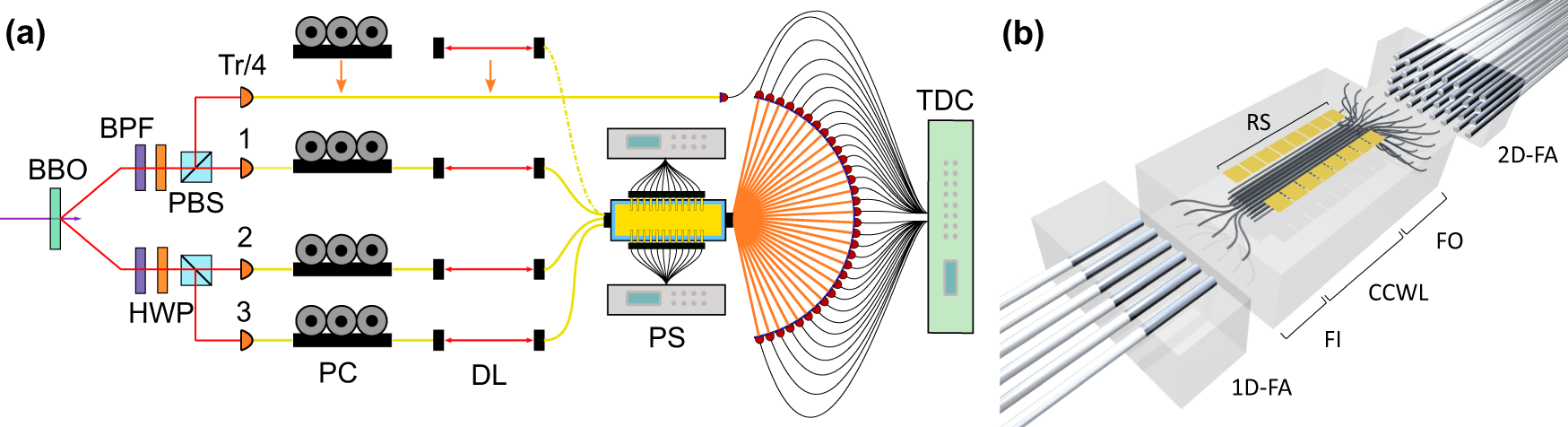

Fig. 2: Scheme of the experimental apparatus.
From: Reconfigurable continuously-coupled 3D photonic circuit for Boson Sampling experiments
