From: Investigation on the phase-transition-induced hysteresis in the thermal transport along the c-axis of MoTe2

Fig. 2

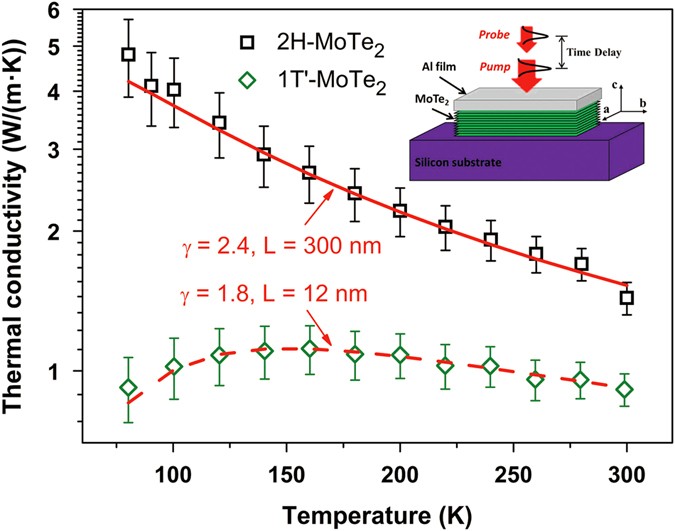

Thermal conductivity of 2H-MoTe2 and 1 T’-MoTe2 samples in c-axis measured at 80–300 K. Error bars represent the systematic errors that are propagated from the uncertainties in film thickness, laser spot size, and specific heat of each layer, etc. The calculated results by our theoretical model are plotted as the solid and dashed red lines for the two samples, respectively. Inset: the schematic of TDTR measurements for the bulk MoTe2 sample in this work
