Fig. 1 | npj Quantum Materials

Fig. 1

From: Emergent magnetic anisotropy in the cubic heavy-fermion metal CeIn3

Fig. 1

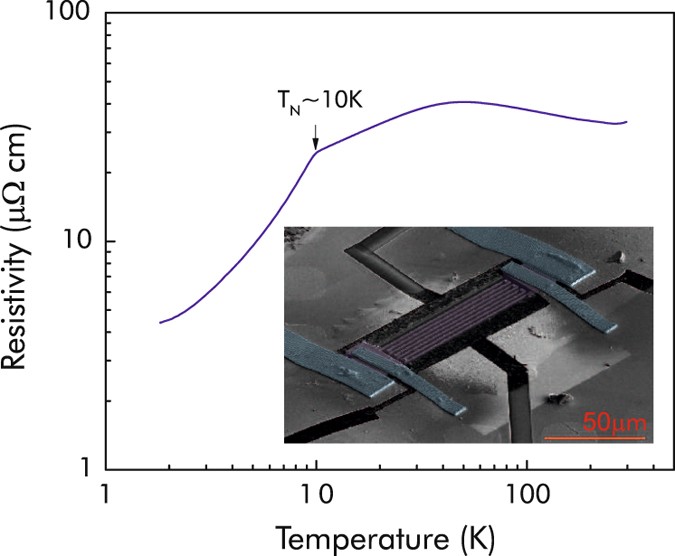

Resistivity of a CeIn3 microstructure as a function of temperature in zero field. Both the characteristic upturn of resistance down to 70 K as well as the sharp drop of resistance at T N ≈ 10 K are characteristic features of bulk CeIn3. Inset: SEM micrograph of a typical microstructure fabricated by FIB machining, designed for a four-terminal resistivity measurement. The crystalline material was patterned into a meandered resistor shape (purple) and contacted by FIB-deposited platinum leads (blue)
