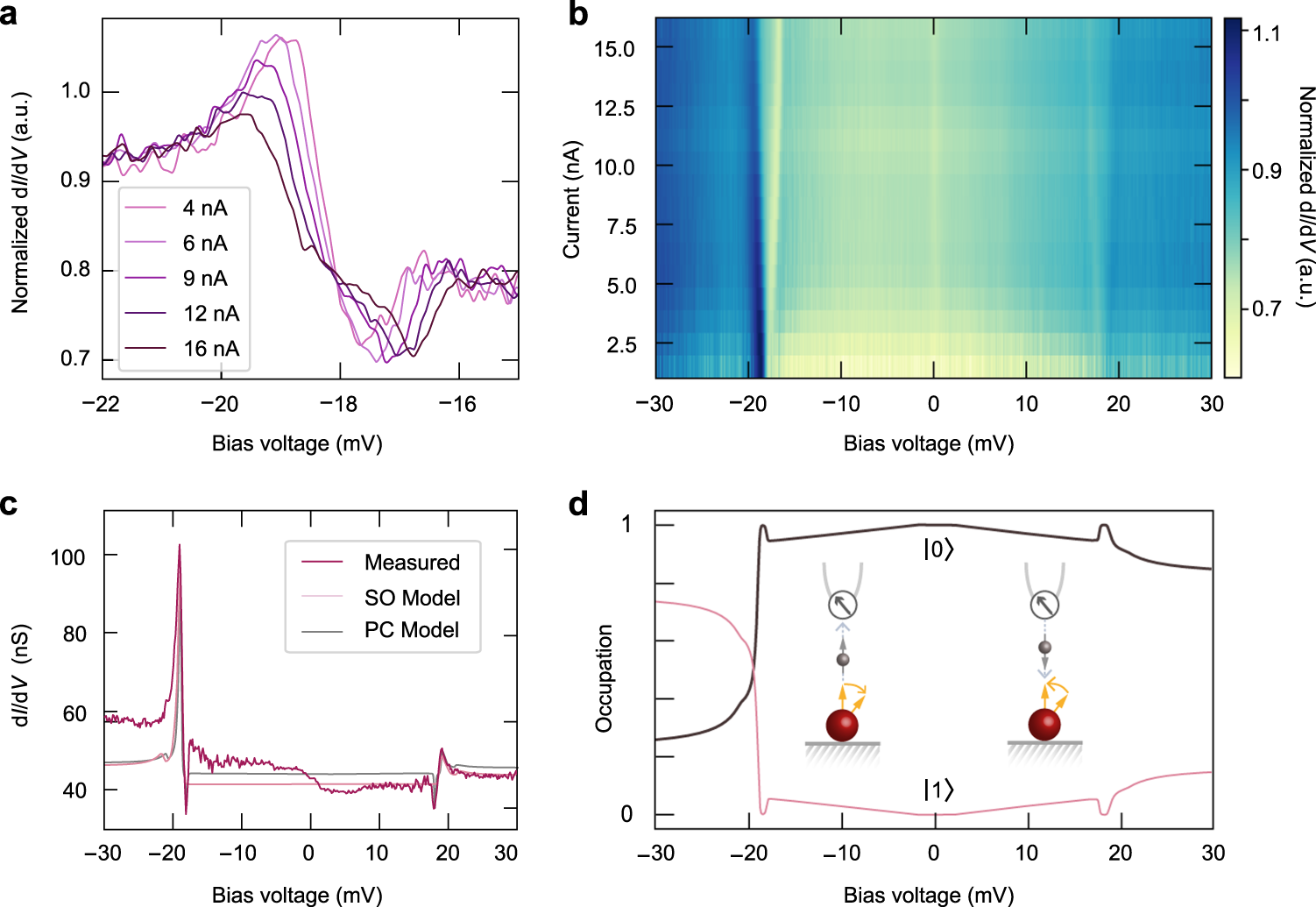

Fig. 4: Conductance dependence of nonequilibrium electron transport.
From: Complete reversal of the atomic unquenched orbital moment by a single electron
a Differential conductance spectroscopy for different conductance values. b Color map of conductance-dependent dI/dV spectroscopy. The same experimental parameters (Bz = 4 T, T = 0.3 K, 150 µV modulation) apply for both (a, b). c Spectroscopy measurement at Bz = 2 T (magenta), taken at a conductance set-point of −90 mV, 8 nA, compared to normalized transport calculations derived from the point-charge (gray) and spin-orbit (pink) models. d Calculated voltage-dependent occupation of the two lowest energy states using the point-charge model (tip polarization PT = −0.3, see Supplementary Note 4).
