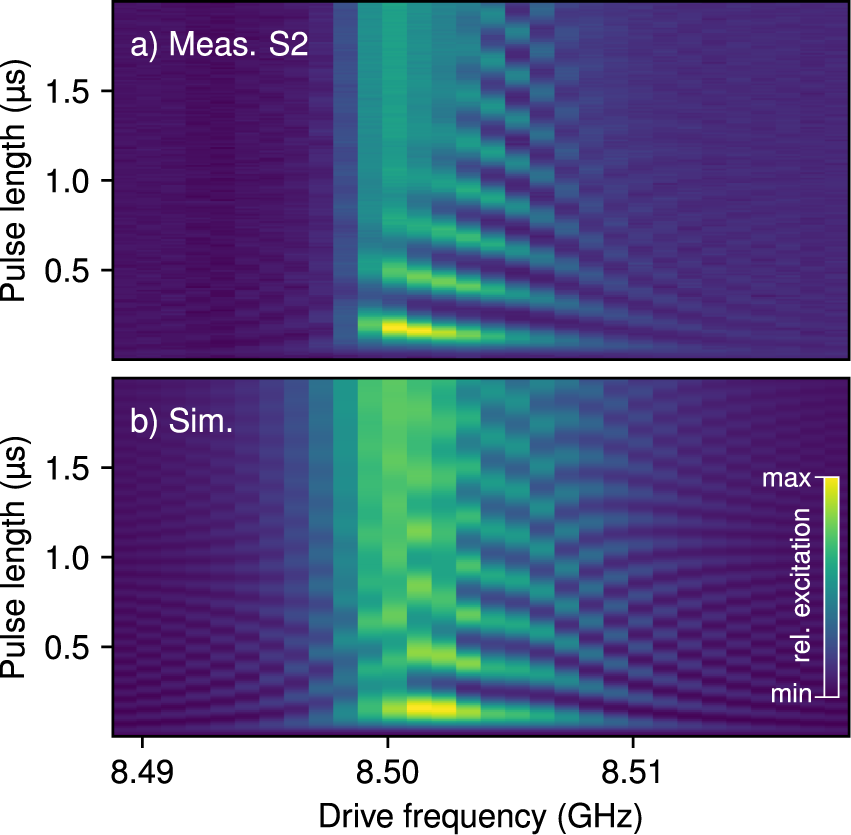

Fig. 3: Rabi oscillation frequency dependence.
From: Rabi oscillations in a superconducting nanowire circuit
a Rabi oscillations measured in S2 (50 nm long wire) in a span of 30 MHz around the low-power transition frequency of 8.504 GHz. The distinct asymmetry can be attributed to higher level excitations and a relative anharmonicity between 1 and 2 MHz. b Result of the numerical Floquet matrix calculation of the density matrix master equation for an anharmonic oscillator with 1.3 MHz anharmonicity. This agrees with an estimation from Fig. 2.
