Fig. 8: The evolution of the conductivity weight and (bi)polaron number as a function of hole concentration. | npj Quantum Materials

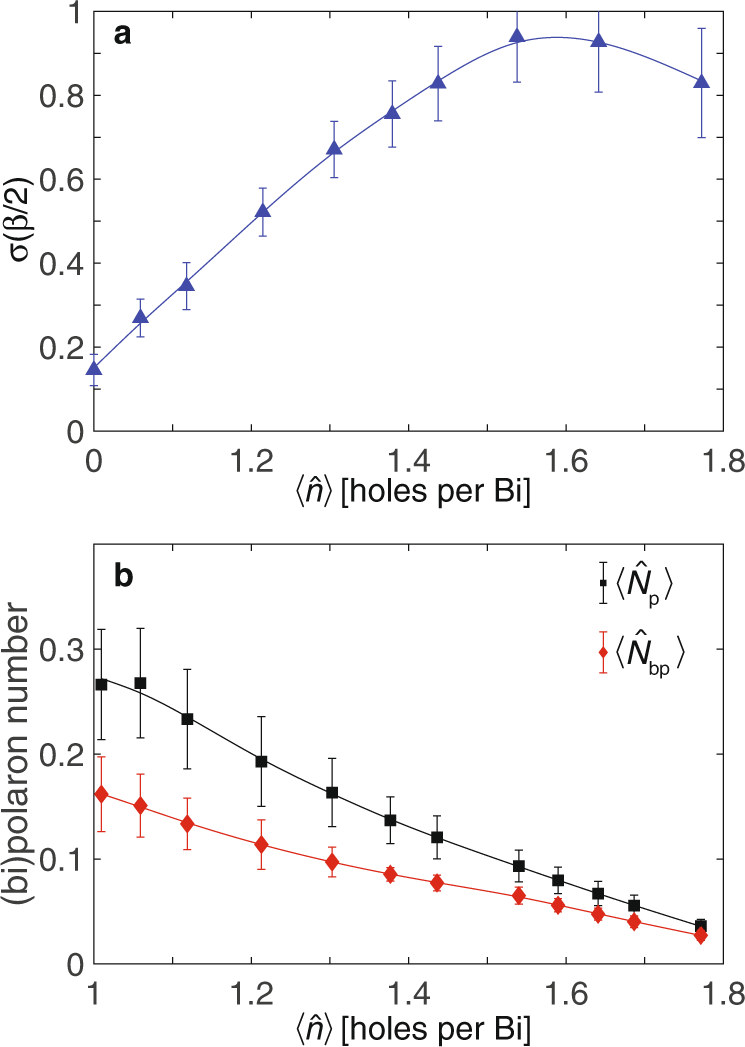

Fig. 8: The evolution of the conductivity weight and (bi)polaron number as a function of hole concentration.

From: Quantum Monte Carlo study of lattice polarons in the two-dimensional three-orbital Su–Schrieffer–Heeger model

Fig. 8

a The conductivity weight as a function of doping. b polaron and bipolaron number as a function of doping. All results are for a temperature \({(\beta {t}_{sp})}^{-1}=0.1\). The error bars represent 1σ statistical errors, which were obtained from the sample variances measured during Monte Carlo sampling, and error bars smaller than the marker size have been suppressed for clarity.
