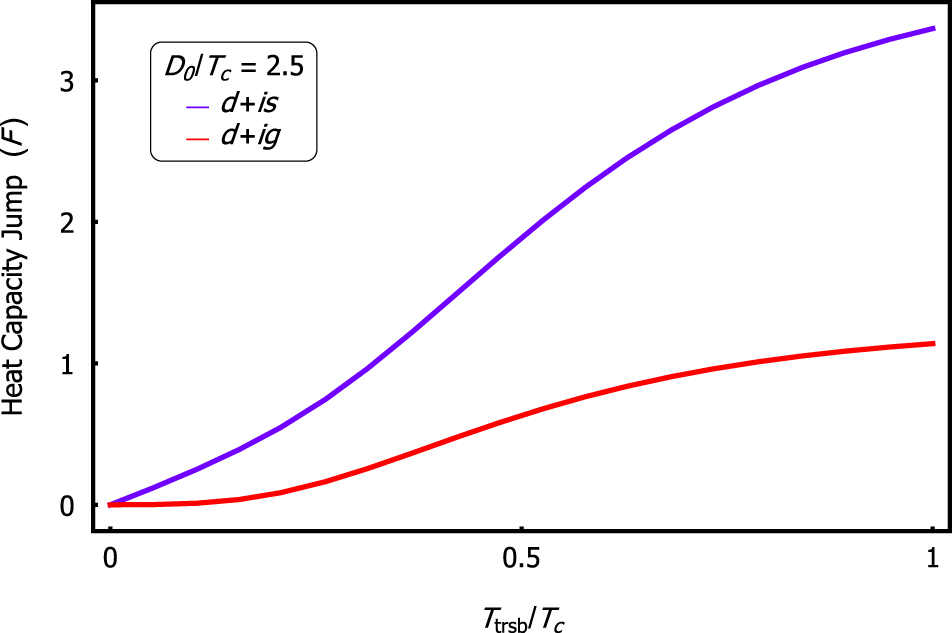

Fig. 2: Specific heat jump.
From: A proposal for reconciling diverse experiments on the superconducting state in Sr2RuO4
Dimensionless magnitude, \({\mathcal{F}}\), of the specific heat jump at Ttrsb with D0/Tc = 2.5. (\({\mathcal{F}}({T}_{{\rm{trsb}}}/{T}_{{\rm{c}}})\) is defined in Eq. (11).) The lower curve is for the case in which the transition is from a d-wave to a \({d}_{{x}^{2}-{y}^{2}}+i{g}_{xy({x}^{2}-{y}^{2})}\)-wave SC; the upper is for a d-wave to a \({d}_{{x}^{2}-{y}^{2}}+is\)-wave.
