Fig. 4: Magnetization curves and Lorentz microscopy.

From: Frustration-driven magnetic fluctuations as the origin of the low-temperature skyrmion phase in Co7Zn7Mn6

Fig. 4: Magnetization curves and Lorentz microscopy.

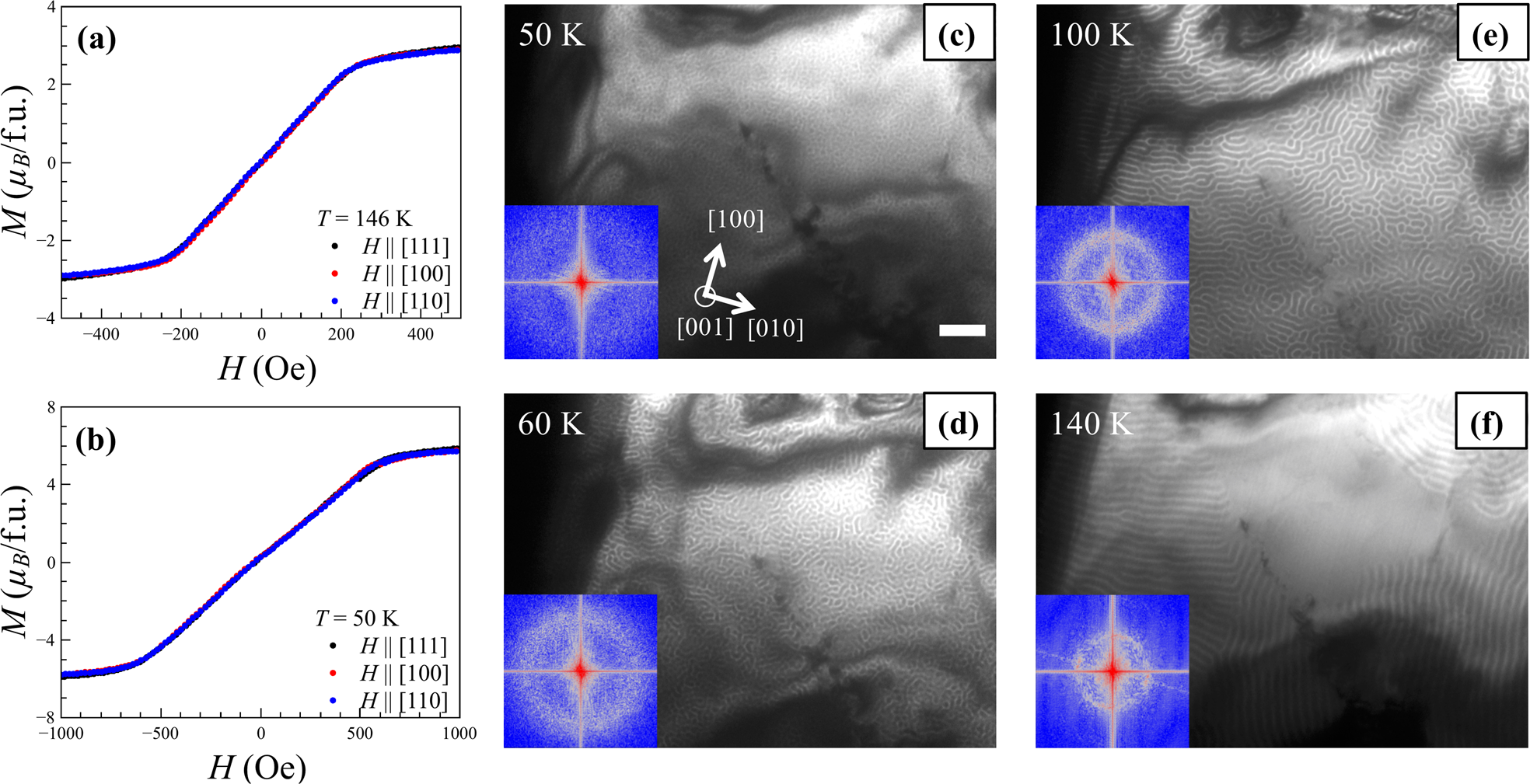

Magnetization curves of bulk Co7Zn7Mn6 measured for principal crystallographic axes at (a) 146 K and (b) 50 K. Evolution of the magnetic textures in thin plate Co7Zn7Mn6 measured on zero-field warming at (c) 50 K, d 60 K, e 100 K and (f) 140 K. The white scale bar corresponds to 500 nm. The insets show corresponding fast Fourier transform patterns. Details of the LTEM measurement protocol are given in “Methods”.
