Fig. 2: Theoretical analysis of the Raman intensities.
From: Raman imaging of ferroelastically configurable Jahn–Teller domains in LaMnO3

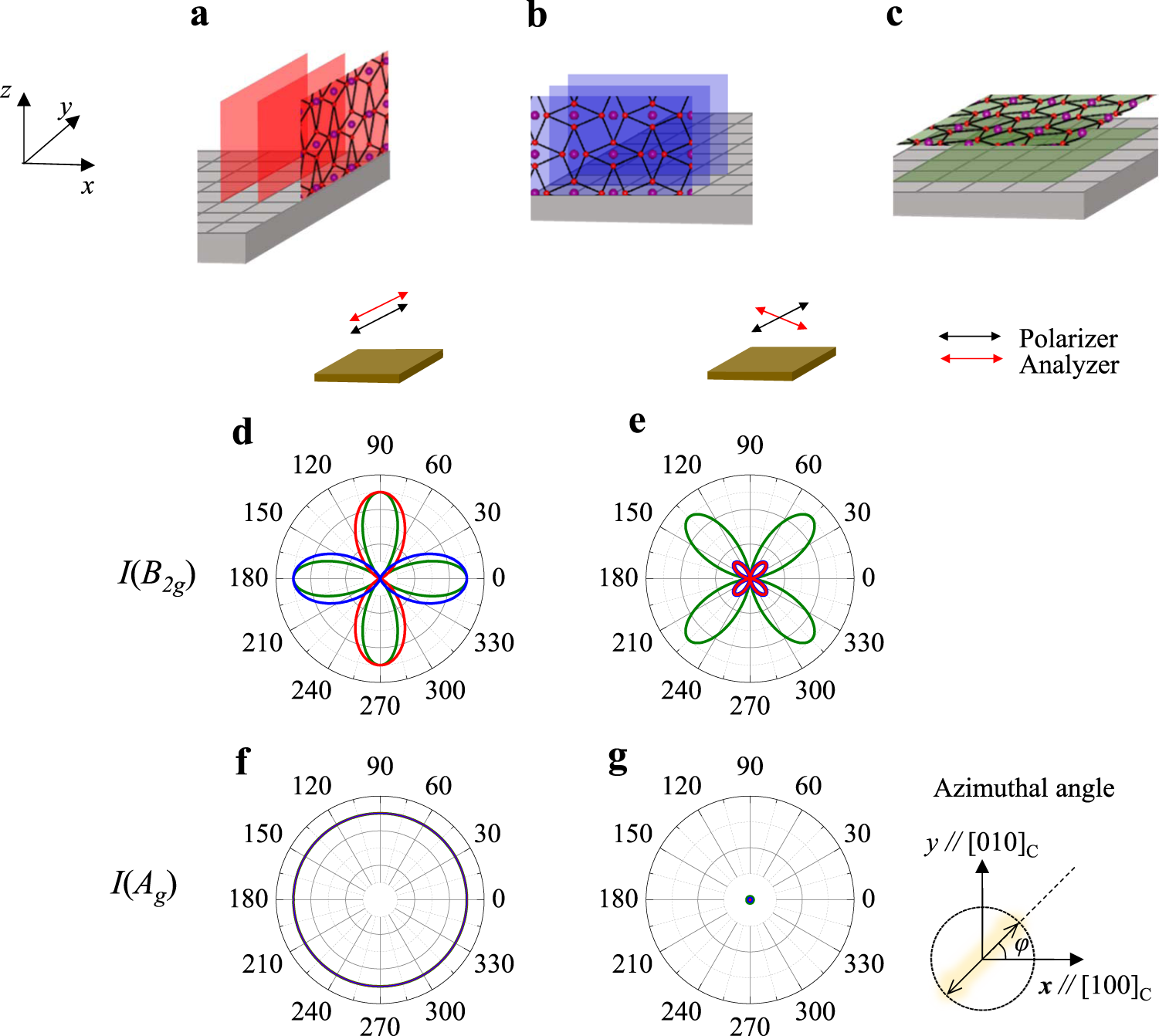

Schematic diagrams describing the possible orientations of JT planes parallel to substrate (100)C (a), (010)C (b), and (001)C (c). Polar plots of the B2g modes in parallel (d) and cross (e) polarization configurations. Polar plots of the Ag modes in parallel (f) and cross (g) polarization configurations.
