Fig. 2: Typical resonant elastic x-ray scattering from the magnetic phases in Cu2OSeO3.

From: Periodically modulated skyrmion strings in Cu2OSeO3

Fig. 2: Typical resonant elastic x-ray scattering from the magnetic phases in Cu2OSeO3.The alternative text for this image may have been generated using AI.

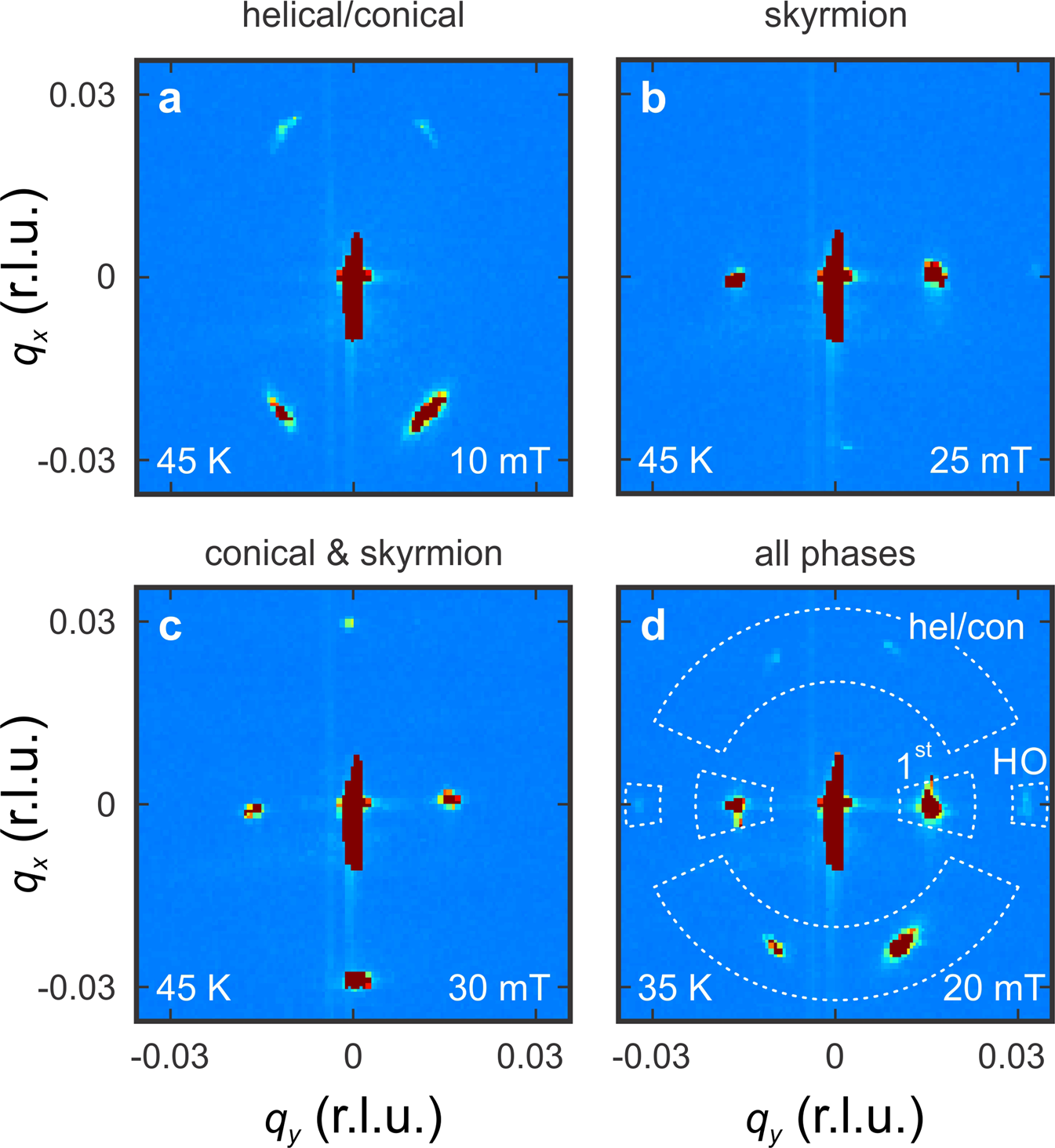

Experimental magnetic scattering images obtained in the (qx, qy,1) plane around the (001) structural Bragg peak using the field-cooling protocol (B∥qx). The scattering contrast in a–c is associated with helical/conical, skyrmion, and conical and skyrmion ordering, respectively (at 45 K). In d, all phases, as well as higher-order skyrmion peaks, are present at the same time (at 35 K). The dashed white lines in d indicate boundaries to the integration region of the respective phases used for further analysis in Fig. 3.
