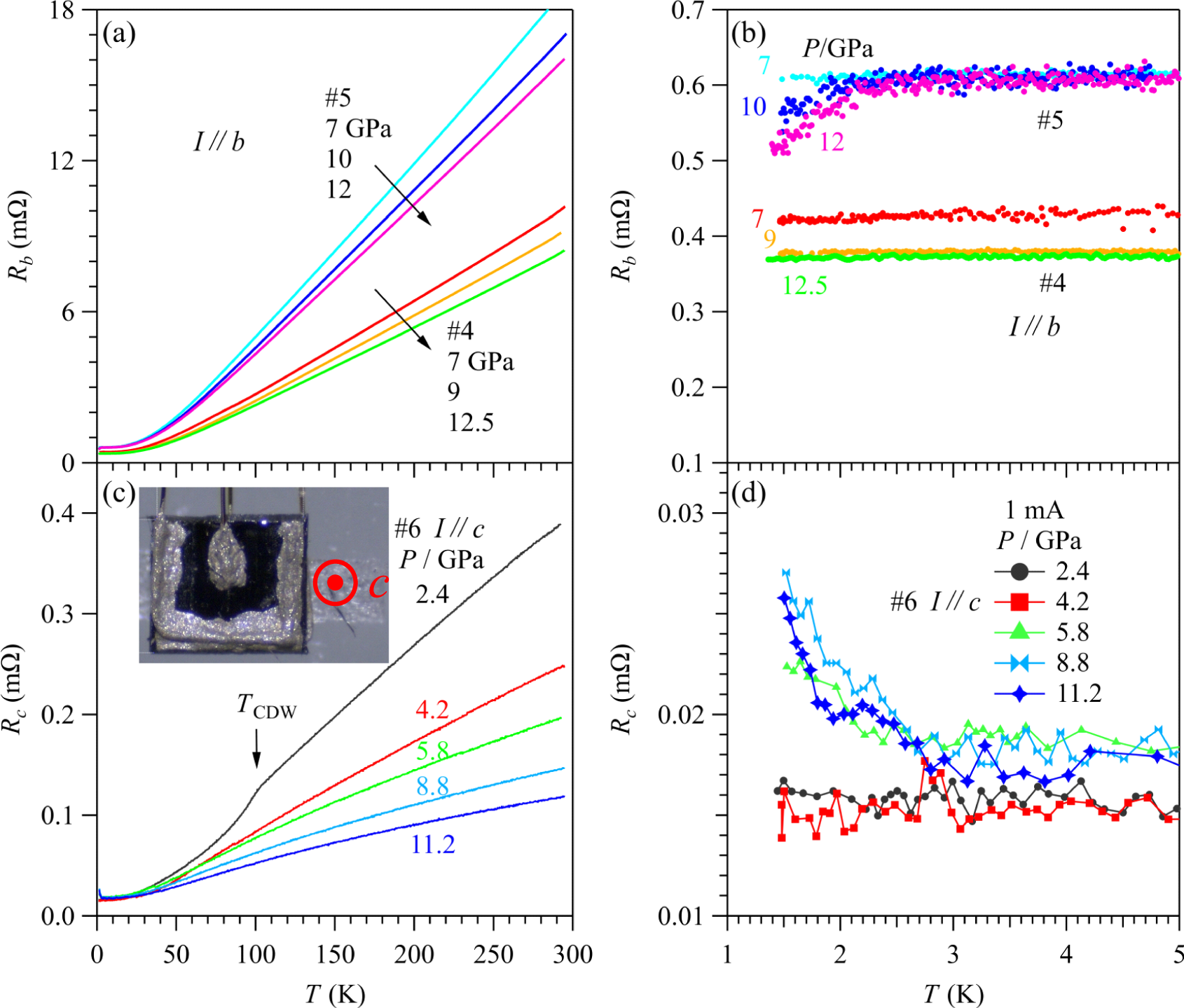

Fig. 5: The b- and c-axis resistance under high pressure.
From: Quasi-one-dimensional superconductivity in the pressurized charge-density-wave conductor HfTe3
a The temperature dependence of b-axis resistance Rb(T) under different pressures from 7 to 12.5 GPa for two samples (#4 and #5) and b their low-temperature data. c The temperature dependence of c-axis resistance Rc(T) under different pressures from 2.5 to 11 GPa for sample #6 and d their low-temperature parts below 5 K. The inset of (c) shows the photo of the sample for the resistance measurement along c-axis.
