Fig. 1: Pressure-induced amorphization.

From: Drastic enhancement of magnetic critical temperature and amorphization in topological magnet EuSn2P2 under pressure

Fig. 1: Pressure-induced amorphization.

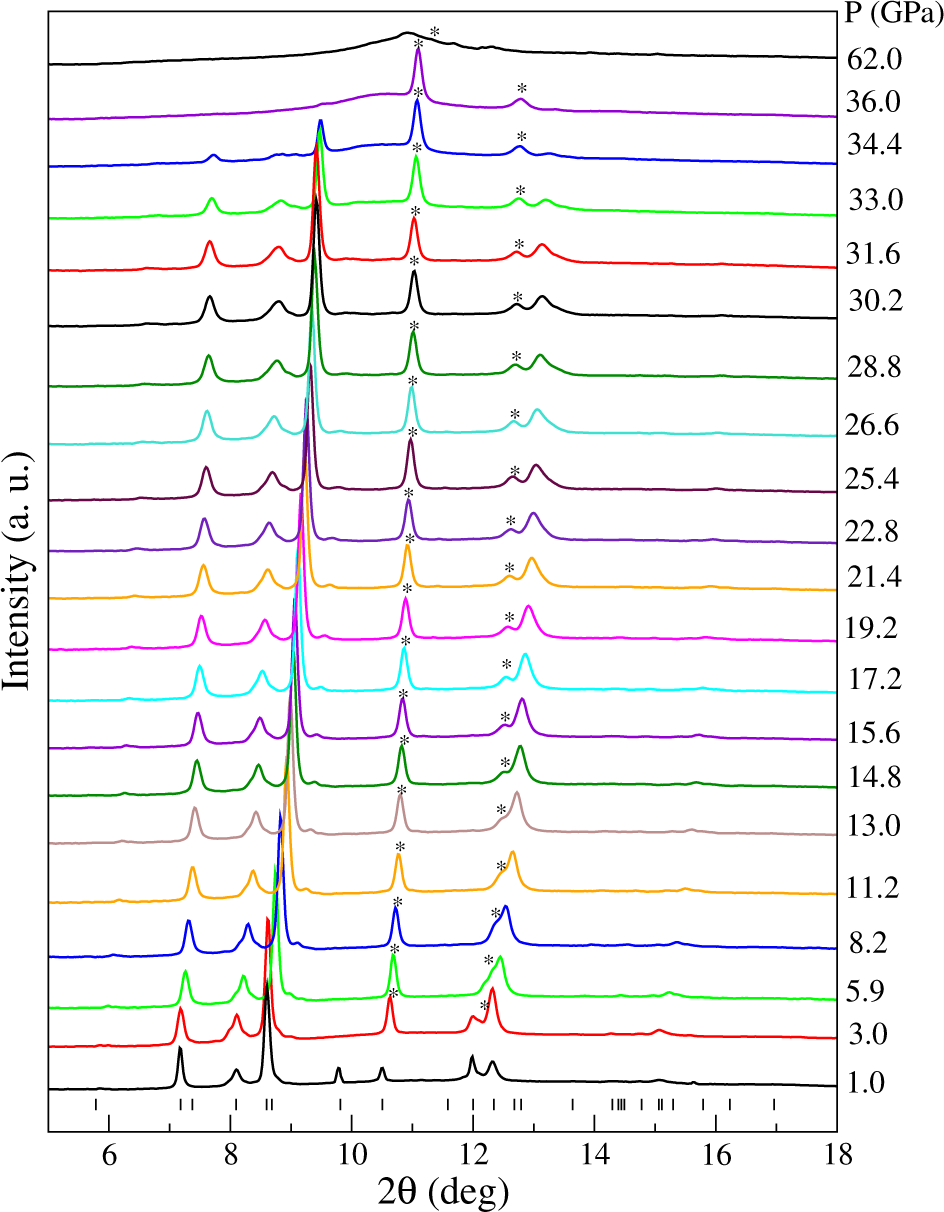

XRD data taken at room temperature in run 2 under pressure up to 62 GPa. Bragg peaks based on the refinement with space group \({\mathrm{R}} \bar{3}{m}\) for 1 GPa data are shown in the tick marks. EuSn2P2 starts transforming into amorphous phase at 34.4 GPa and is in a fully amorphous phase at 36 GPa. Diffraction peaks from Au are identified by asterisks.
