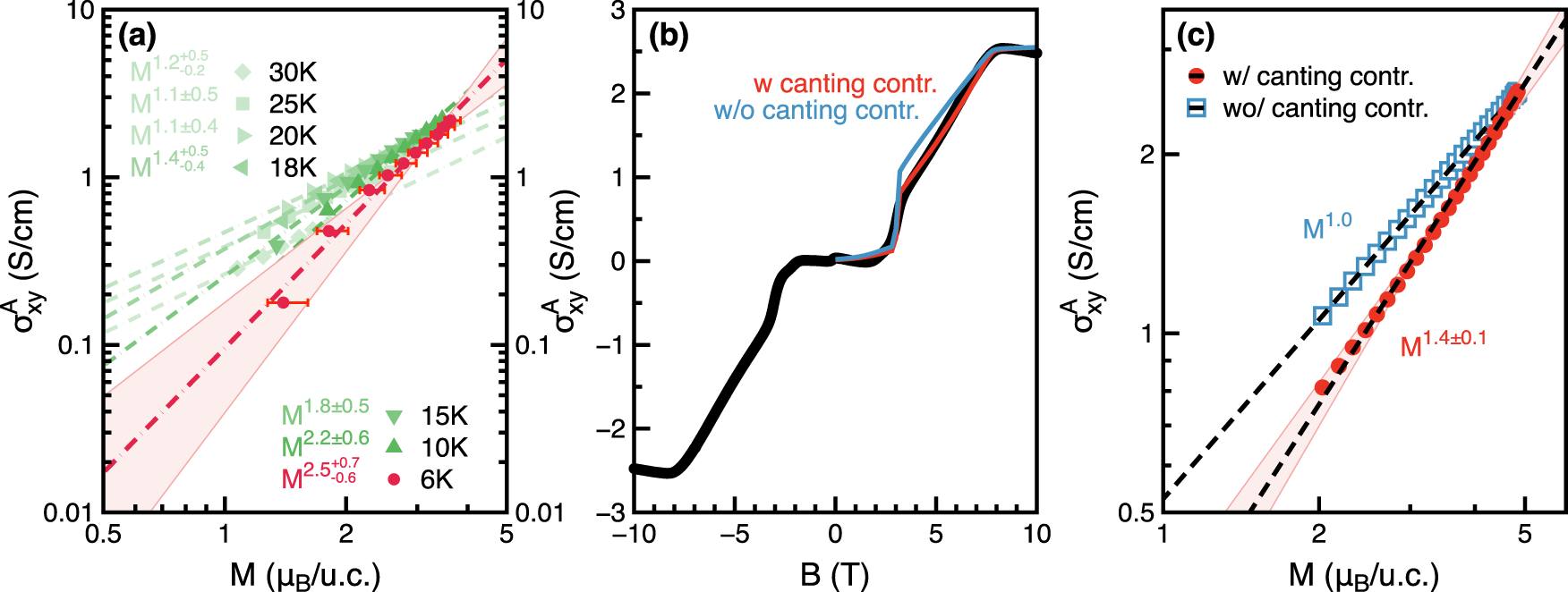

Fig. 4: Scaling of the AHE in MnBi2Te4.
From: Topological response of the anomalous Hall effect in MnBi2Te4 due to magnetic canting
a Scaling relation between the anomalous Hall conductivity and the magnetization at various temperatures. Data from SQUID magnetometry measured between 2.8 T and 7 T is used. The shaded red area accounts for a scaling envelope that spans the width of the error bars. The magnetization curves used here are shown in Supplementary Discussion 5. b Anomalous Hall conductivity data (black) compared to Monte Carlo simulation with (red) and without (blue) the canting contribution. c Scaling relation between the anomalous Hall conductivity and the magnetization obtained from the Monte Carlo simulation with (red) and without (blue) the canting.
