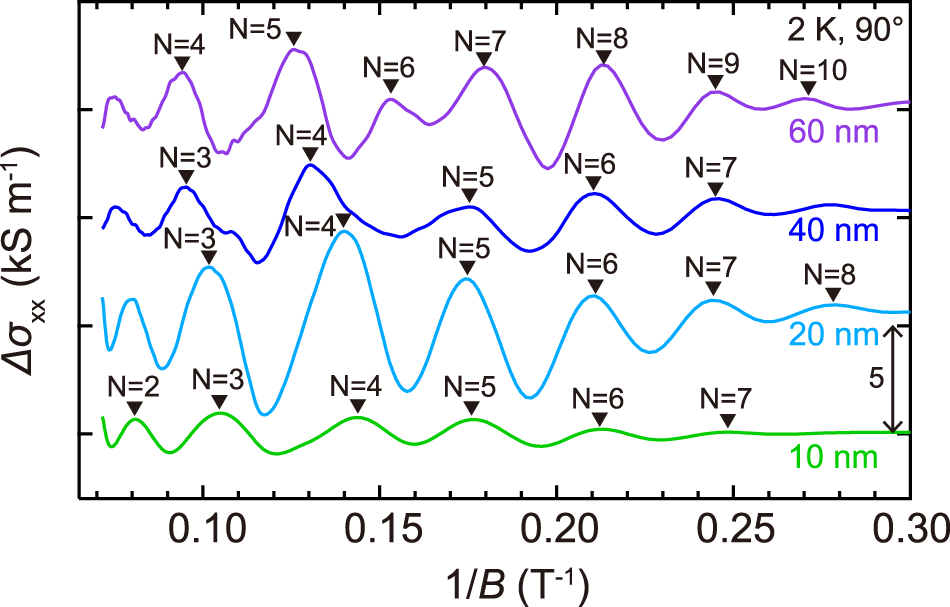

Fig. 9: Background-subtracted SdH oscillations at 2 K with B (3.3 T < B < 14 T).
From: High-mobility two-dimensional carriers from surface Fermi arcs in magnetic Weyl semimetal films
The magnetic field was applied in the out-of-plane [001] direction of the SrTiO3 substrates for the SrRuO3 films with t = 10, 20, 40, and 60 nm. The black triangles show peak positions.
