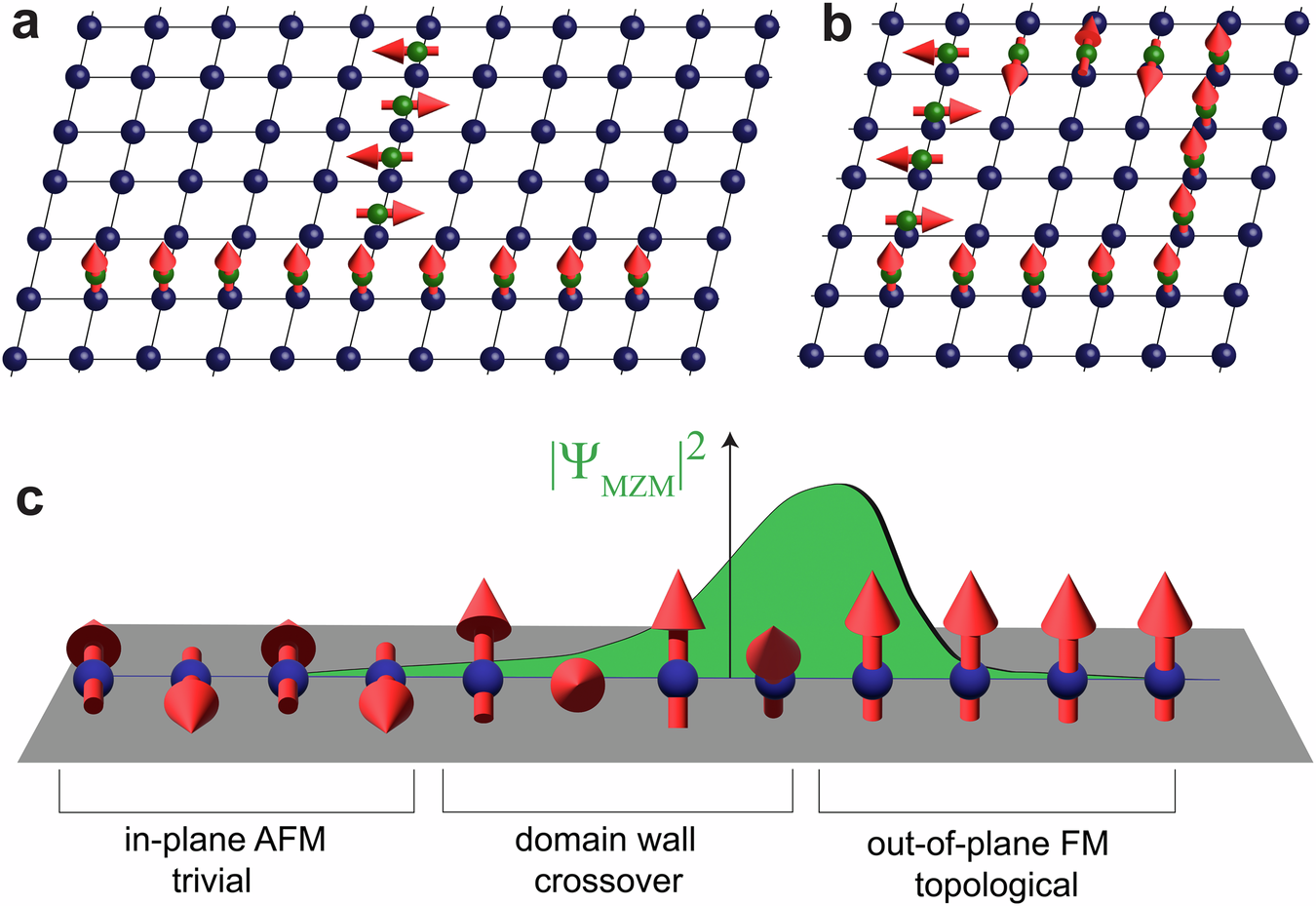

Fig. 1: Topological tuning in MSH networks.
From: Simulating topological quantum gates in two-dimensional magnet-superconductor hybrid structures
Schematic representation of (a) a T-structure MSH system, and (b) a single loop MSH system. c A 1D MSH network can be tuned locally between a topological and trivial phase by changing the local magnetic structure from an out-of-plane ferromagnetic to an in-plane antiferromagnetic alignment. The MZM is localized at the end of the network’s topological region.
