Fig. 8: The ceRNA regulation axis was predicted to potentially affect the tissue/organ morphogenesis. | npj Regenerative Medicine

Fig. 8: The ceRNA regulation axis was predicted to potentially affect the tissue/organ morphogenesis.

From: Type I collagen and fibromodulin enhance the tenogenic phenotype of hASCs and their potential for tendon regeneration

Fig. 8: The ceRNA regulation axis was predicted to potentially affect the tissue/organ morphogenesis.The alternative text for this image may have been generated using AI.

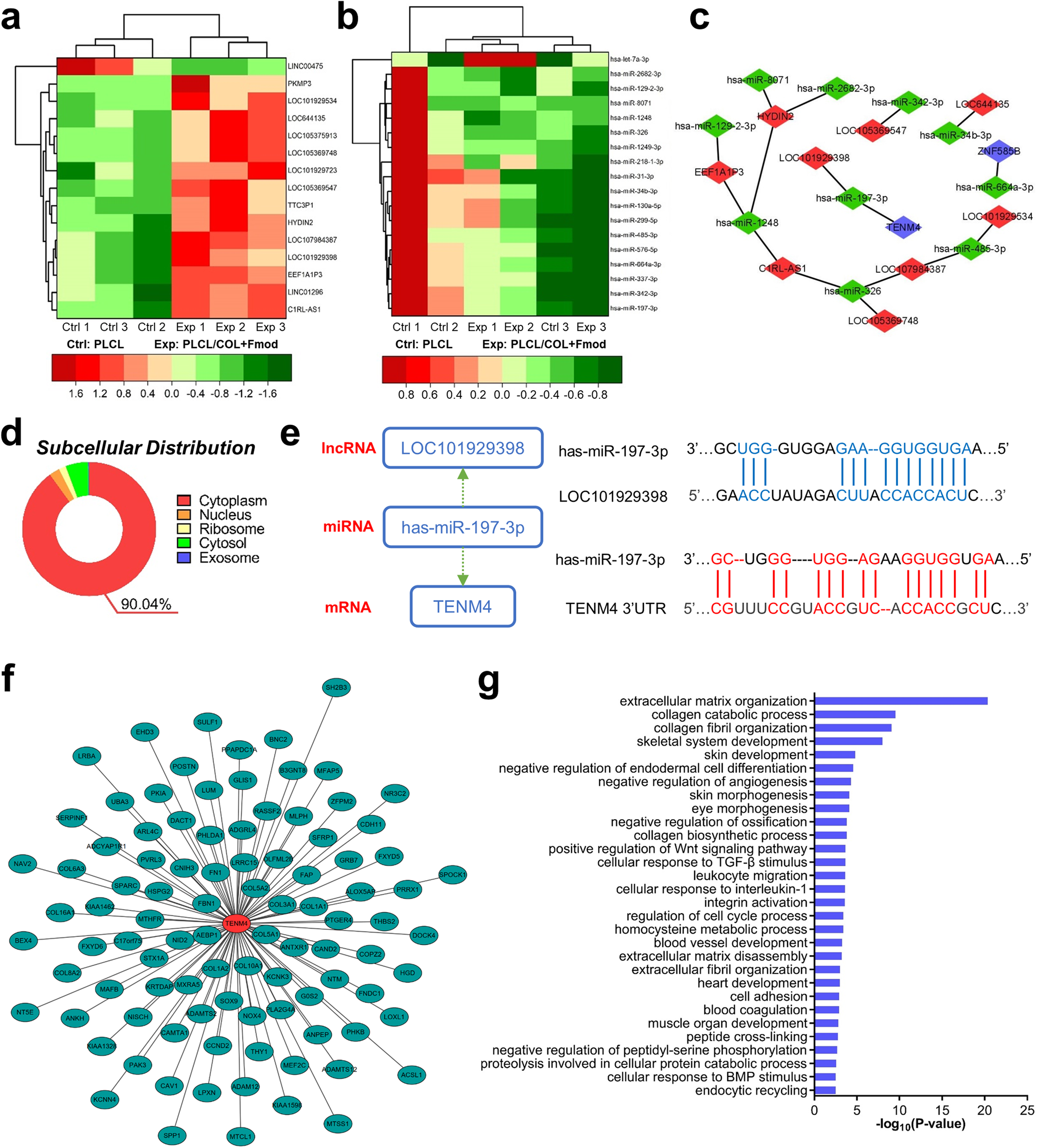

a Differentially expressed lncRNAs were displayed in a clustered heat map. b Differentially expressed miRNAs were displayed in a clustered heat map. c The triple regulation network showed the interaction relationship among differentially expressed mRNAs, lncRNAs and miRNAs. Blue hub indicates mRNA. Red hub indicates lncRNA. Green hub indicates miRNA. d Subcellular distribution of LOC101929398 was exhibited as a pie chart. e Possible binding sequences between LOC101929398 and has-miR-197-3p, TENM4 and has-miR-197-3p were predicted. 3′UTR, 3′-untranslated region. f Genes co-expressed with TENM4 were identified. Longer distance from central hub indicates lower correlation score. g Top 30 of GO Biological Process terms enriched by these co-expressed genes were illustrated in a histogram.
