Fig. 7: Global connectome analysis.
From: Stroke-induced neuroplasticity in spiny mice in the absence of tissue regeneration

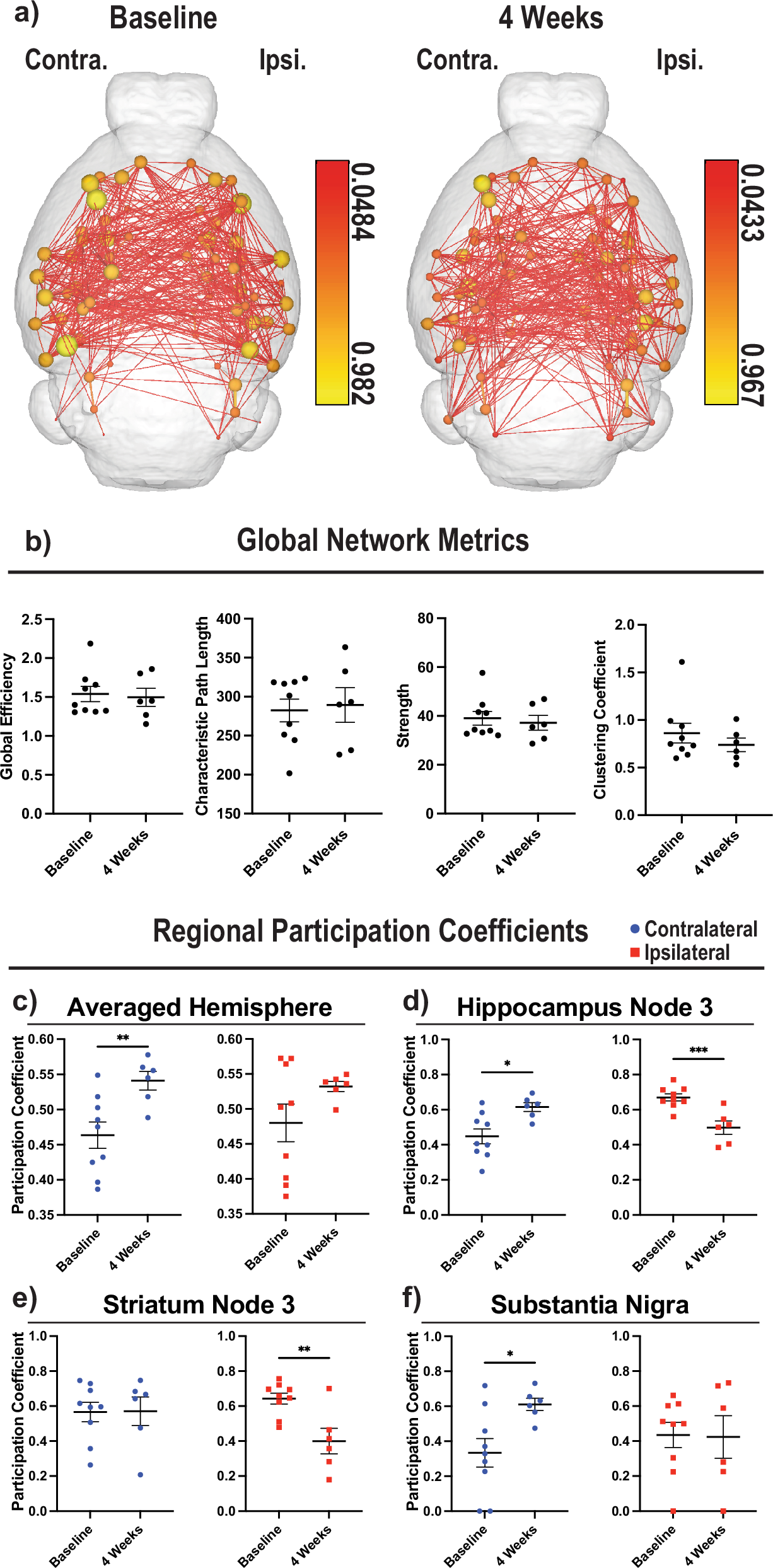

a Average connectome images from 80 nodes for baseline (left, n = 9) and 4 wpi (middle, n = 6). Reference bars for nodes for each time point are given (right of each image). The contralateral hemisphere is the left side of the brain and the ipsilateral hemisphere is the right. b Four representative global connectome analysis are provided including global efficiency, characteristic path length, strength, and clustering coefficient, respectively from left to right. c The participation coefficients from all 40 nodes in each hemisphere were averaged and then compared between baseline and 4 wpi. d The participation coefficients of the third node in the hippocampus are depicted comparing between baseline and 4 wpi. e Same as (d) but looking at the third node of the striatum. f Same as (d), but looking at the substantia nigra. c–f Blue circles denote contralateral hemisphere and red squares denote ipsilateral hemisphere. Unpaired t-test used for analysis (*p < 0.05; **p < 0.01; ***p < 0.001).
