Fig. 3
From: Human augmentation of ecosystems: objectives for food production and science by 2045

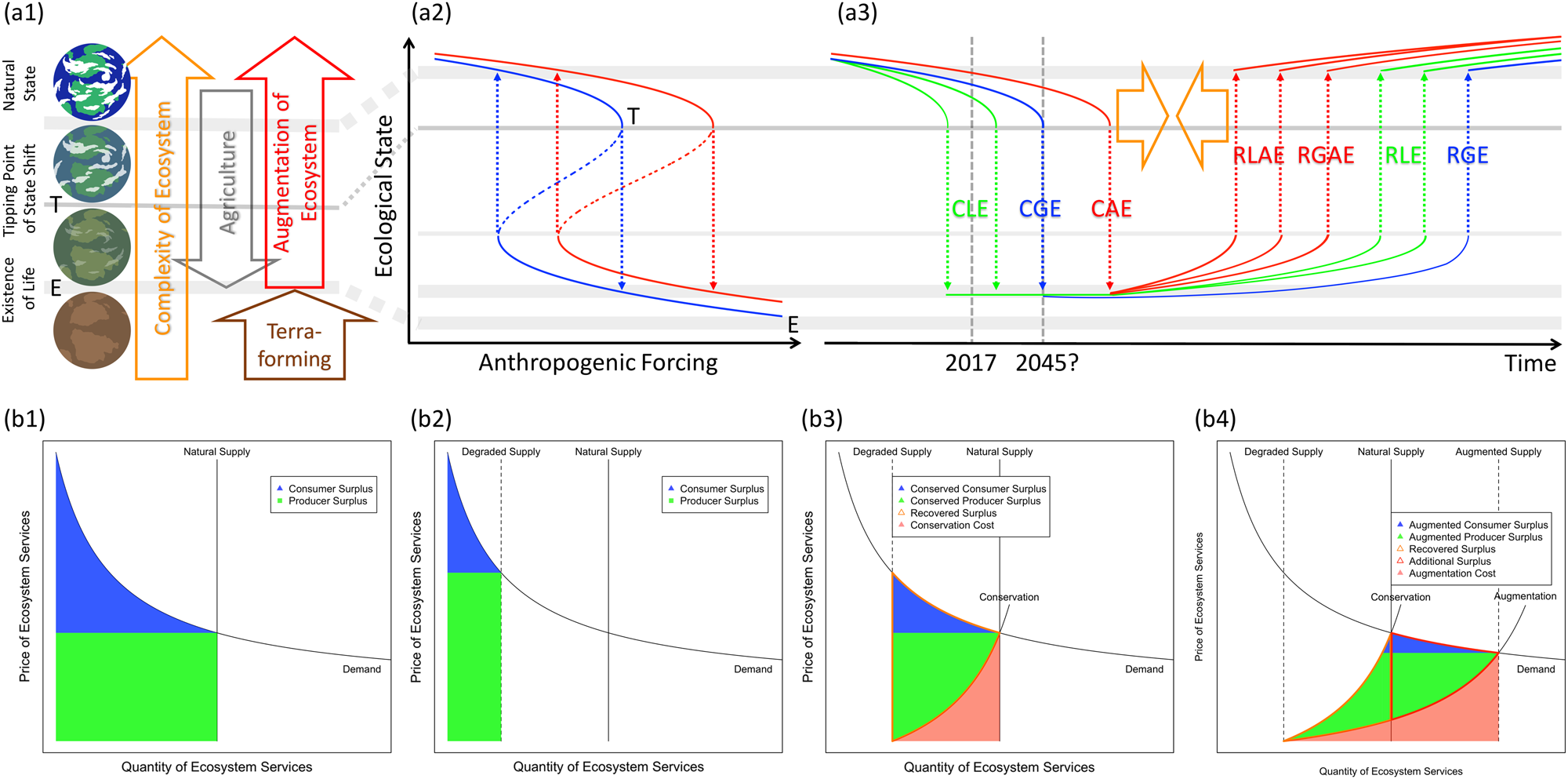

Possible scenario of prevention and reversal of ecological state shift (a1–a3) and expected outcome on ecosystem services (ES) (b1–b4). (See more explanation in Supplementary Material 4.)
