Fig. 4: Representative fits to the data from the models described above.

From: Vortex fluidic mediated encapsulation of functional fish oil featuring in situ probed small angle neutron scattering

Fig. 4

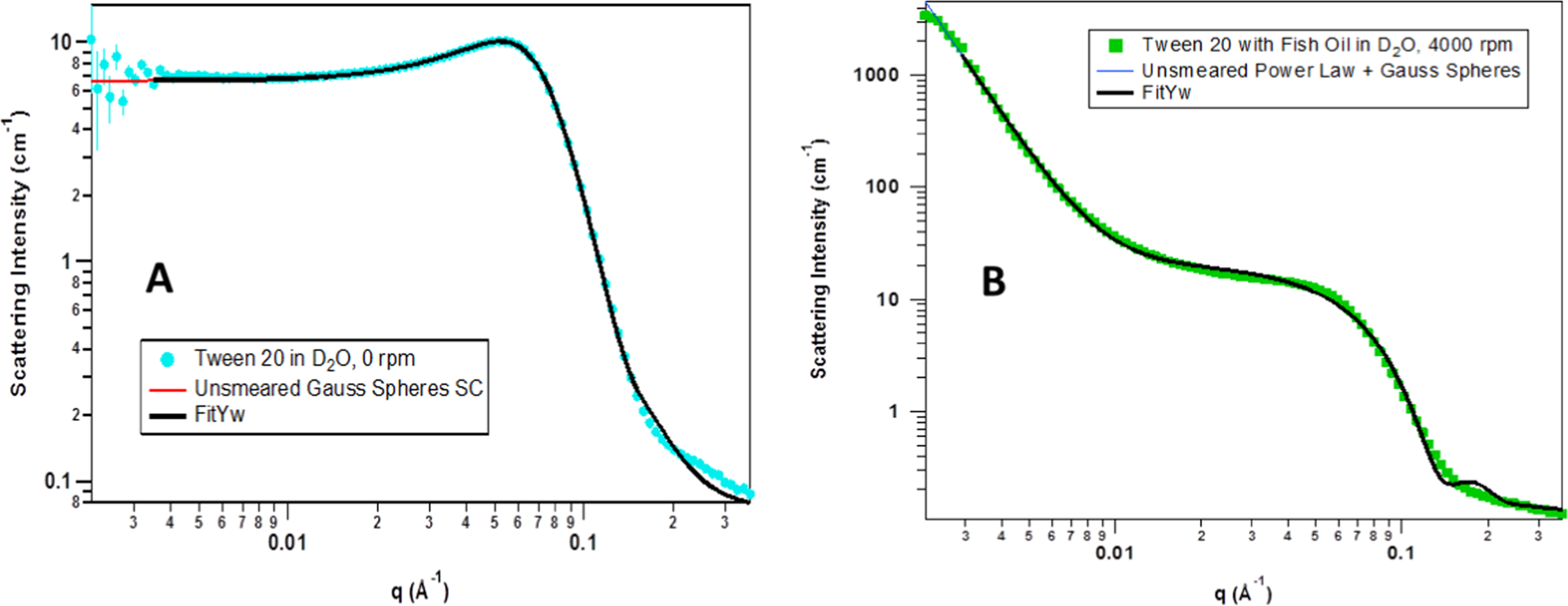

a Gauss Sphere with screened Coulomb interaction model fitted to the 10 wt% of Tween 20-alone sample at 0 rpm (static), b summed Power Law + Gauss Sphere model fitted to the 10 wt% of Tween 20 with 10 wt% of fish oil sample while being sheared at 4000 rpm. The fits to the other data sets shown in the SI are similar in fit quality.
