Fig. 4: Biological pathway analysis of DEGs in exposure to ASC at 5 °C.

From: Transcriptomic response of Campylobacter jejuni following exposure to acidified sodium chlorite

Fig. 4

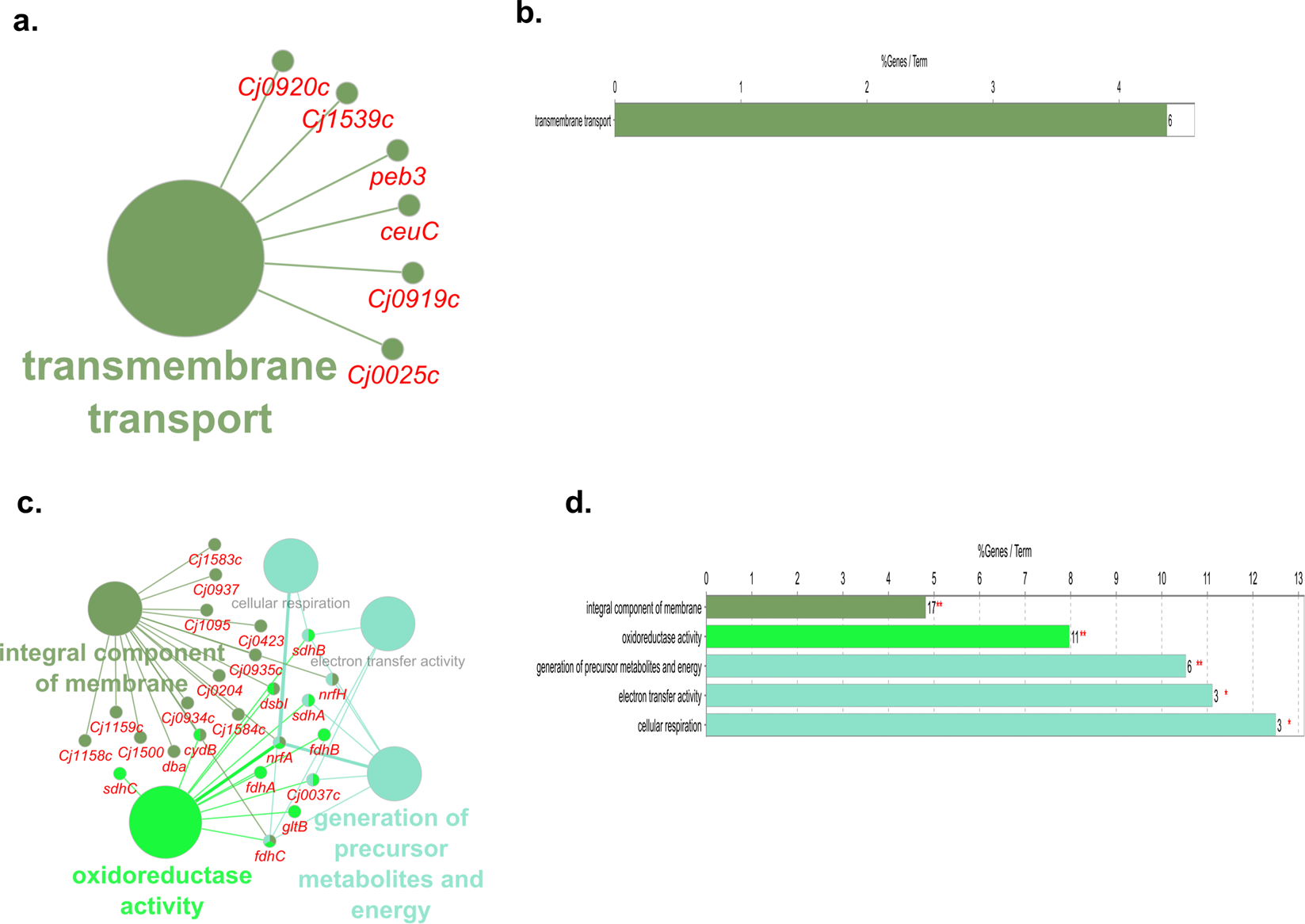

Pathways enriched by mapping the upregulated (a, b) and downregulated (c, d) DEGs obtained from C. jejuni post-exposure to ASC at 5 °C. DEGs significantly (FDR < 0.05; log2 fold change >1 or <−1) regulated in C. jejuni in response to ASC treatment were mapped in ClueGO and CluePedia plugins in Cytoscape and only the significantly (P < 0.05) enriched biological pathways were visualized. In the graph, the length of individual bars indicates the percent of DEGs associated with respective terms out of the total associated genes.
