Fig. 6: Biological pathway analysis of DEGs in exposure to ASC vs. chlorine at 25 °C. | npj Science of Food

Fig. 6: Biological pathway analysis of DEGs in exposure to ASC vs. chlorine at 25 °C.

From: Transcriptomic response of Campylobacter jejuni following exposure to acidified sodium chlorite

Fig. 6

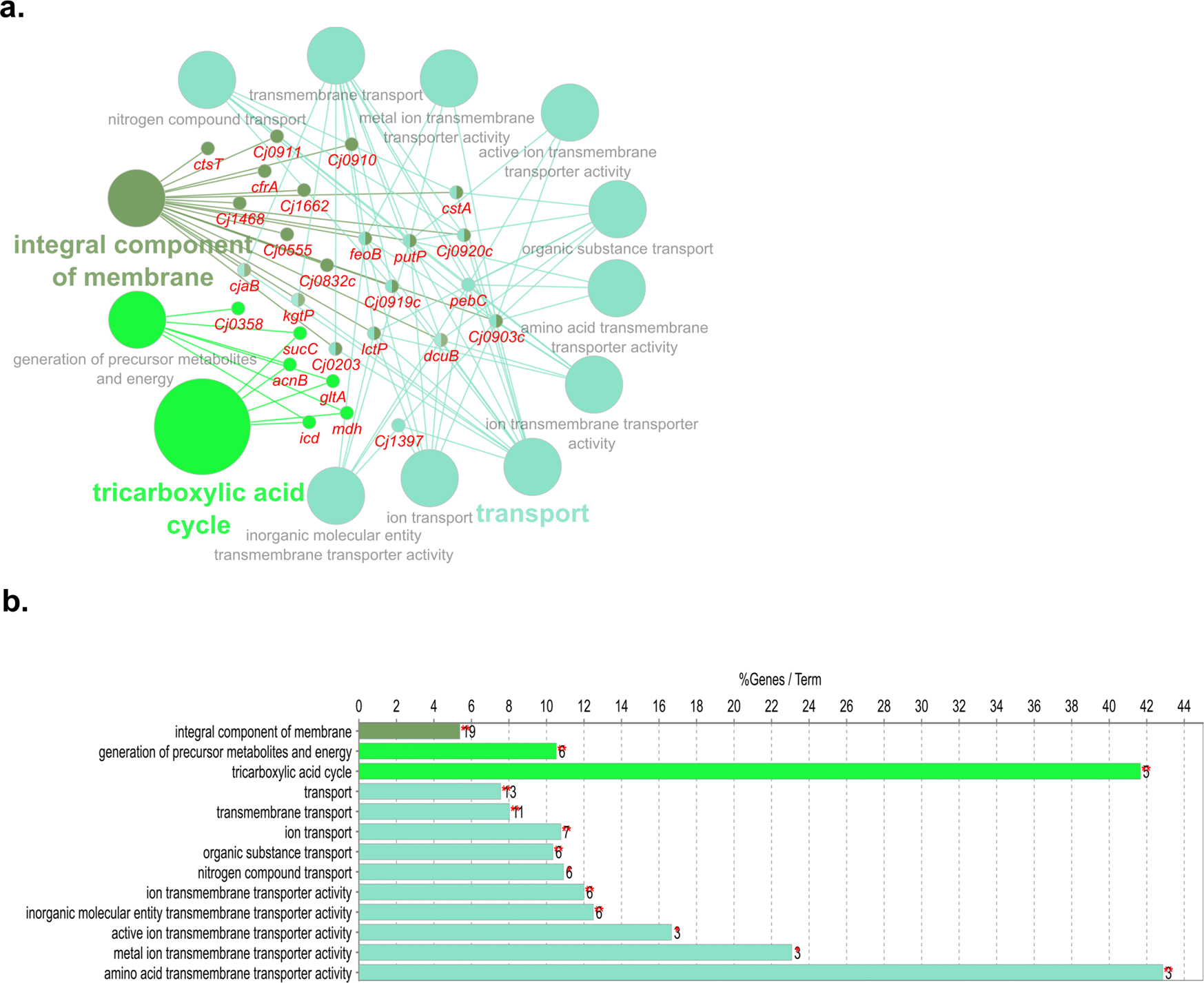

Pathways enriched by mapping upregulated (a, b) DEGs obtained from C. jejuni post-exposure to ASC at 25 °C. DEGs significantly (FDR < 0.05; log2 fold change >1 or <−1) upregulated in C. jejuni were mapped in ClueGO and CluePedia plugins in Cytoscape and only significantly (P < 0.05) enriched biological pathways were visualized. In the graph, the length of individual bars indicates the percent of DEGs associated with respective terms out of the total associated genes.
