Fig. 1: Analysis of BBR related target genes.
From: Network pharmacology study on the mechanism of berberine in Alzheimer’s disease model

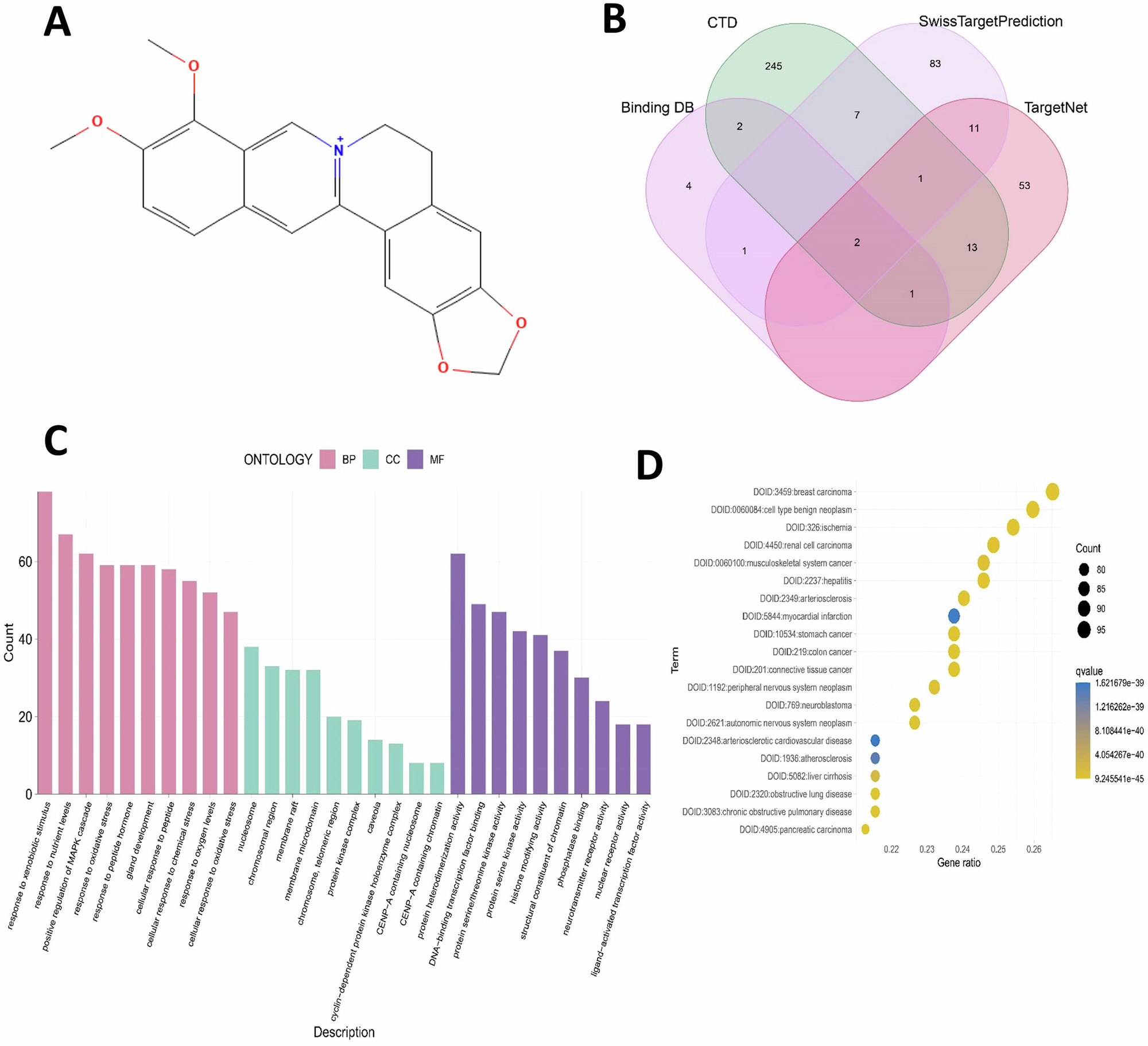

A Molecular structure of BBR. B All relevant target genes were retrieved from the indicated four drug-related target websites and Venn diagram was demonstrated. C Gene Ontology analysis for all BBR target genes. D Disease Ontology analysis for all BBR target genes.
