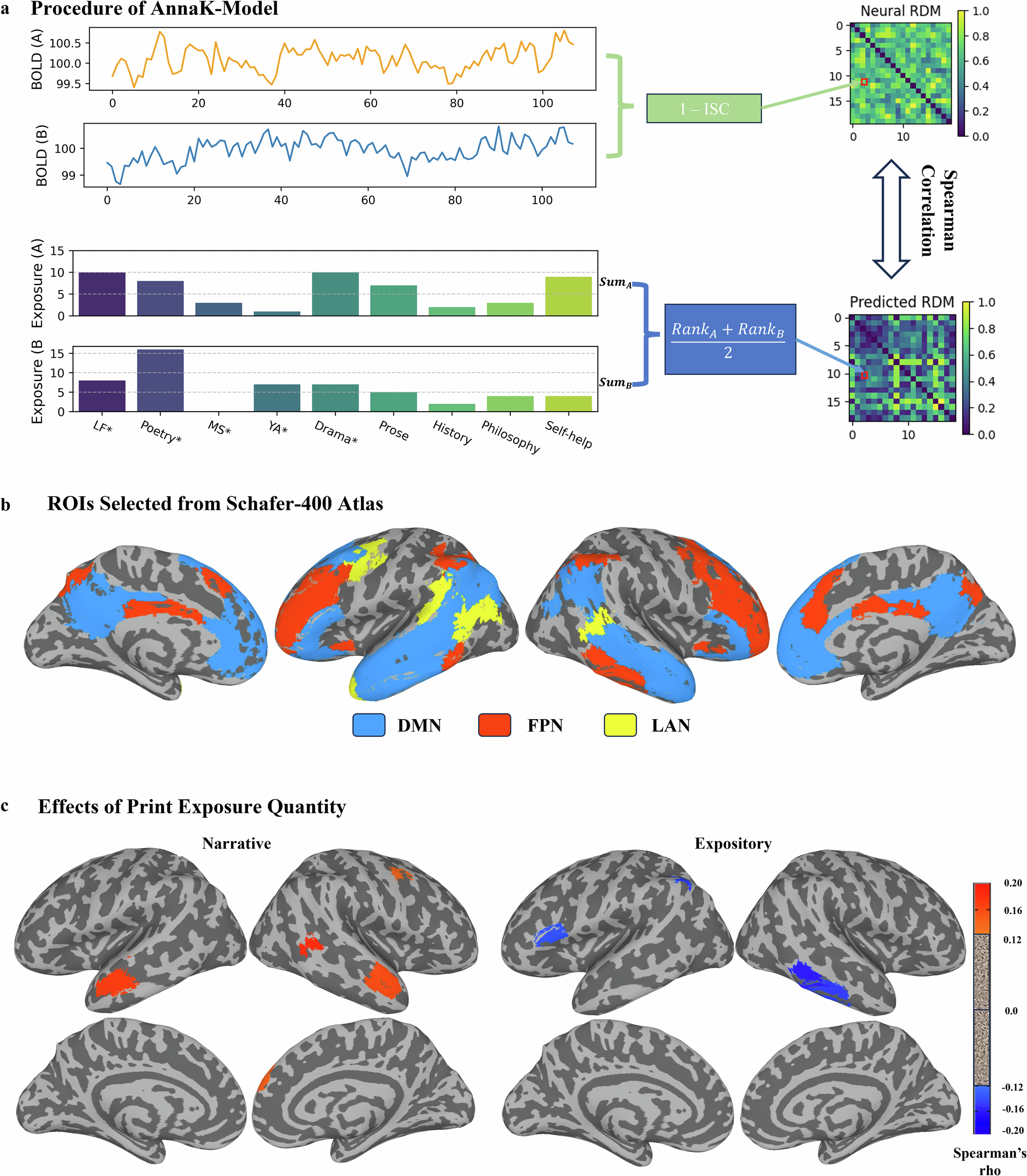

Fig. 2: The relationship between print exposure quantity and neural dynamics was investigated with the AnnaK model.
From: Reading experience reveals shared and idiosyncratic neural patterns during text comprehension
a The AnnaK model was built by correlating the vectorized neural and predicted RDMs, with each cell representing the dissimilarity of a participant pair. b The 153 ROIs were selected from the Schafer-400 atlas. Different colors indicate whether an ROI belongs to the DMN, FPN, or supplemental language network (LAN). c Brain regions where the similarity of neural dynamics was associated with overall print exposure. There were different effects for narrative and expository reading. The color bar indicates Spearman correlation coefficients between predicted and neural RDMs. ROIs with FDR-corrected q < 0.05 were reported as significant.
